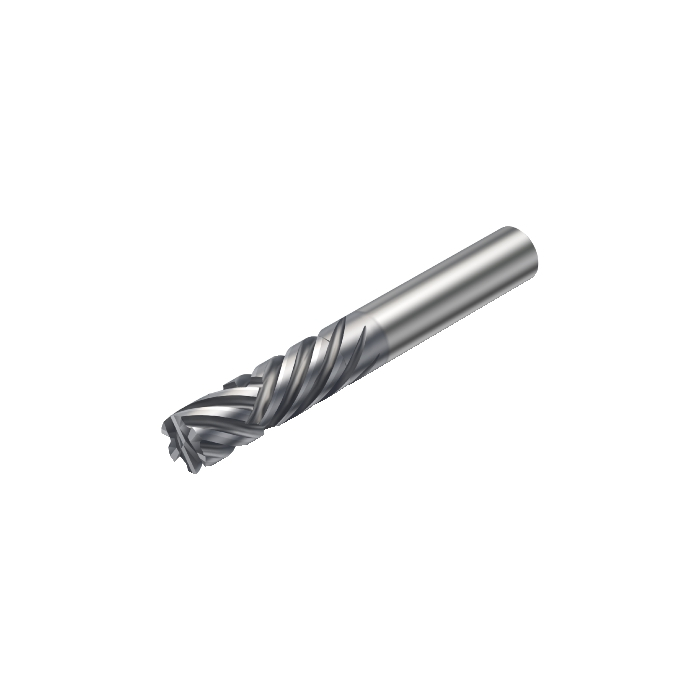

Sandvik Coromant 2P460-0794-NA 1630 CoroMill™ Plura solid carbide end mill for Edging applications
Next
Sandvik Coromant A316-20SM450C07563P 1030 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
Previous
![Sandvik Coromant 2P460-0794-NA 1630 CoroMill™ Plura solid carbide end mill for Edging applications](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/660762d05/sandvik-coromant-2p460-0794-na-1630-coromilltm-plura-solid-carbide-end-mill-for-edging-applications.jpg)
![Sandvik Coromant A316-20SM450C07563P 1030 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6602700fb/sandvik-coromant-a316-20sm450c07563p-1030-coromilltm-316-solid-carbide-head-for-stable-multi-operations-milling.jpg)
R 1 888,30
inc. vat
In stock
SKU
6255703
CoroMill® Plura solid carbide end mill for Edging applications
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Edging applications
DCON - Connection Diameter | 6.35mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 76.2mm |
RPMX - Rotational Speed Maximum | 400001/min |
WT - Weight Of Item | 0.046kg |
OAL - Overall Length | 76.2mm |
OHX - Maximum Overhang | 40.2mm |
LSC - Clamping Length | 36mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RE - Corner Radius | 0mm |
LU - Usable Length | 25.4mm |
APMX - Depth Of Cut Maximum | 25.4mm |
DC - Cutting Diameter | 6.35mm |
DCF - Cutting Diameter Face Contact | 6.35mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 12.5deg |
GAMP - Axial Rake Angle | 4deg |
ULDR - Usable Length Diameter Ratio | 4 |
SPTL - Length Were Flute Helix Hand Changes Direction | 6.35mm |
ORDCODE | 2P460-0635-NA 1630 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2500_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:32:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1630 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | COMPRESSION |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
