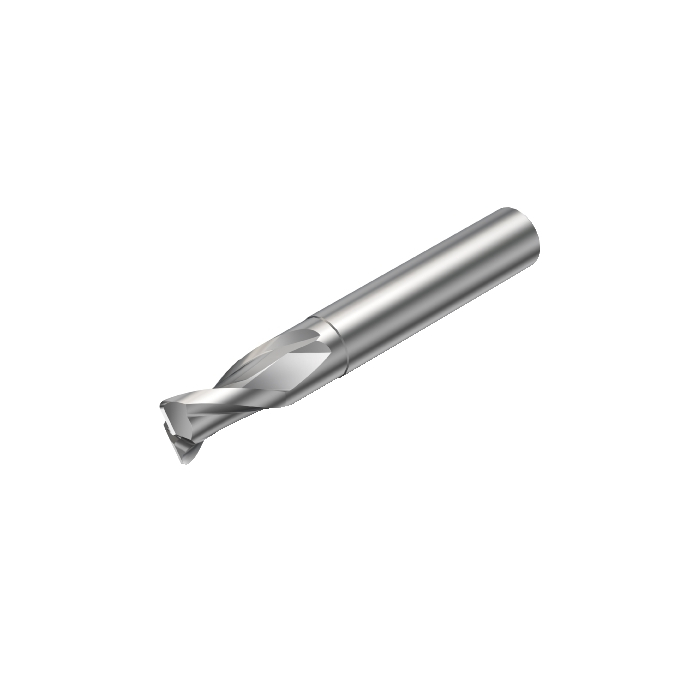

Sandvik Coromant 2S220-1200-150-NC H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

Name: Sandvik Coromant 2S220-1200-150-NC H10F CoroMill™ Plura solid carbide end mill for Large chip Removal
SKU: 6260145
Price: 3474.15 ZAR
Availability: InStock

Be the first to review this product

R 3 474,15 inc. vat

In stock

SKU

6260145

CoroMill® Plura solid carbide end mill for Large chip Removal

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Large chip Removal

More Information

More Information
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	83mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	608001/min
WT - Weight Of Item	0.127kg
OAL - Overall Length	83mm
OHX - Maximum Overhang	38mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	1.5mm
LU - Usable Length	35mm
APMX - Depth Of Cut Maximum	18mm
DC - Cutting Diameter	12mm
DCF - Cutting Diameter Face Contact	9mm
DN - Neck Diameter	11.7mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	17deg
GAMP - Axial Rake Angle	1deg
ULDR - Usable Length Diameter Ratio	2.916666666667
ORDCODE	2S220-1200-150-NC H10F
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:53:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	H10F
SUBSTRATE	HF
CBMD - Chip Breaker Manufacturer's Designation	AL
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
