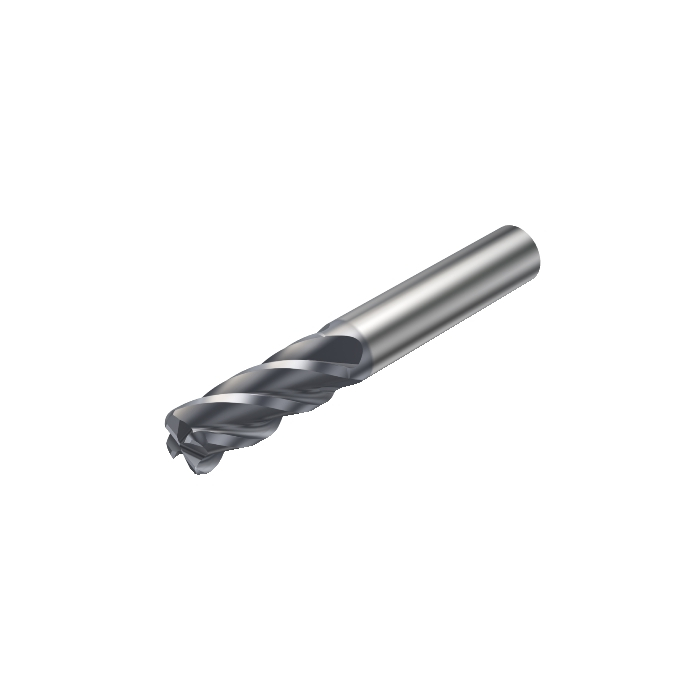

Sandvik Coromant 2S342-0300-020-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2S342-0300-020-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 6732480
Price: 1285.70 ZAR
Availability: InStock

Be the first to review this product

R 1 285,70 inc. vat

In stock

SKU

6732480

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
BD - Body Diameter	3.05mm
LB - Body Length	15.6mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	22.5g
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
LSC - Clamping Length	36mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
RE - Corner Radius	0.2mm
LU - Usable Length	7mm
APMX - Depth Of Cut Maximum	7mm
DC - Cutting Diameter	3mm
DCF - Cutting Diameter Face Contact	2.6mm
FHA - Flute Helix Angle	38deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.3333333333333
ORDCODE	2S342-0300-020-PA 1730
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:26:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1730
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
