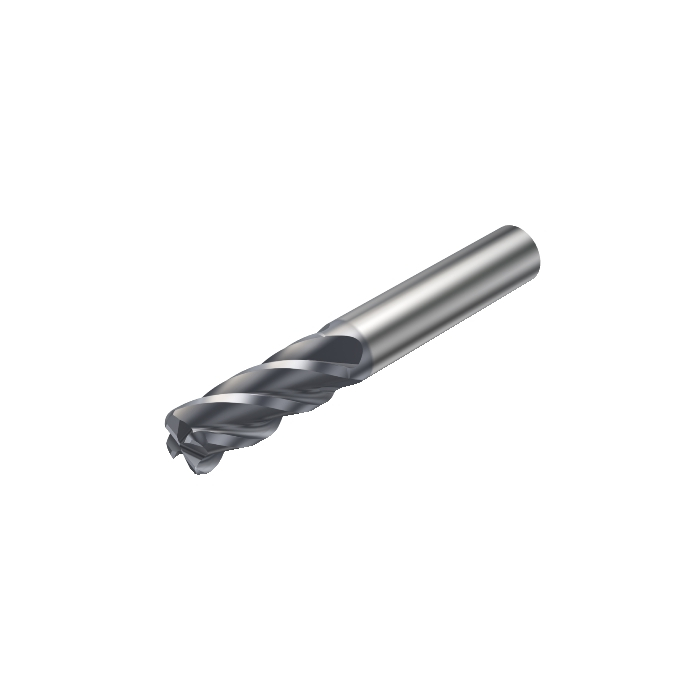

Sandvik Coromant 2S342-0635-076-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2S342-0635-076-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 6732505
Price: 1429.45 ZAR
Availability: InStock

Be the first to review this product

R 1 429,45 inc. vat

In stock

SKU

6732505

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
DCON - Connection Diameter	6.35mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63.5mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	29.2g
OAL - Overall Length	63.5mm
OHX - Maximum Overhang	27.5mm
LSC - Clamping Length	36mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
RE - Corner Radius	0.762mm
LU - Usable Length	15.875mm
APMX - Depth Of Cut Maximum	15.875mm
DC - Cutting Diameter	6.35mm
DCF - Cutting Diameter Face Contact	4.826mm
FHA - Flute Helix Angle	38deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.5
ORDCODE	2S342-0635-076-PA 1730
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:39:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1730
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
