Sandvik Coromant 2S342-0635-076CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

R 1 644,50 inc. vat
In stock
SKU
6732507

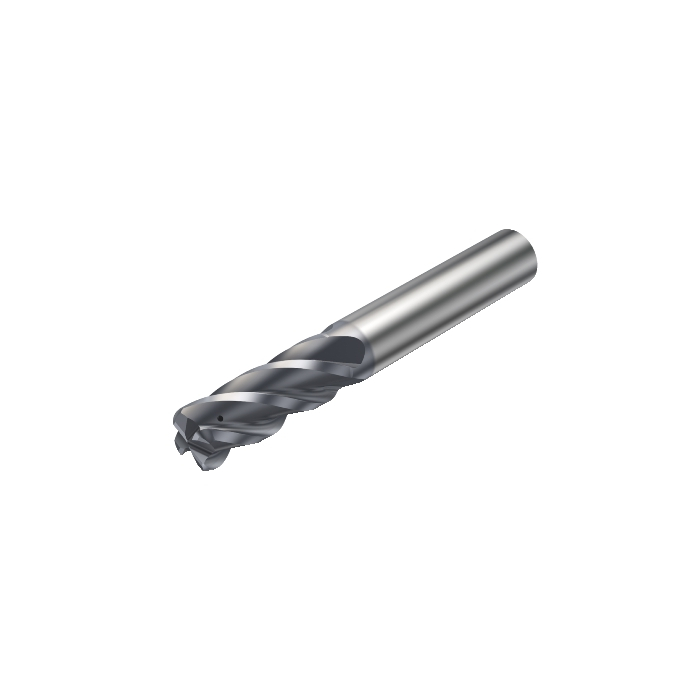

CoroMill® Plura solid carbide end mill for Heavy Duty milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy Duty milling
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 6.35mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63.5mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.028kg
OAL - Overall Length 63.5mm
OHX - Maximum Overhang 27.5mm
LSC - Clamping Length 36mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 0.762mm
LU - Usable Length 15.875mm
APMX - Depth Of Cut Maximum 15.875mm
DC - Cutting Diameter 6.35mm
DCF - Cutting Diameter Face Contact 4.826mm
FHA - Flute Helix Angle 38deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 10.5deg
ULDR - Usable Length Diameter Ratio 2.5
ORDCODE 2S342-0635-076CMA 1740
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R2500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:55:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1740
COATING PVD AlTiN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential True
