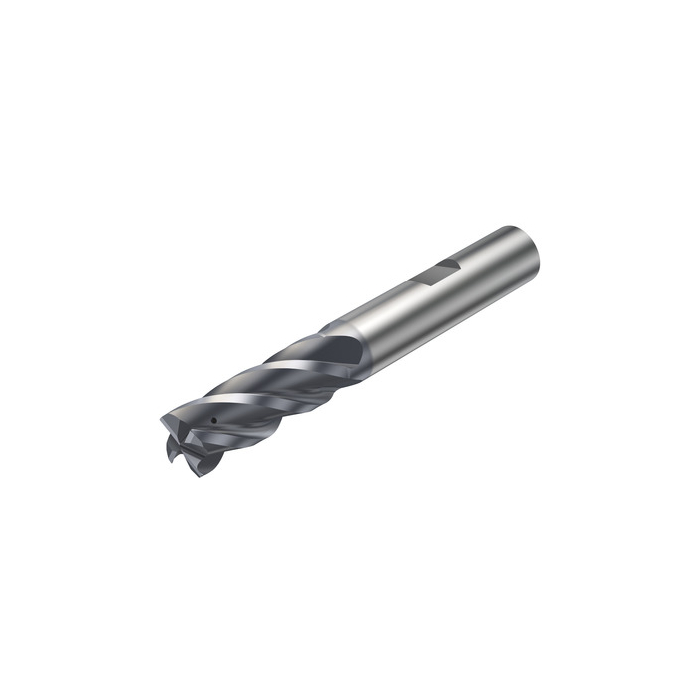

Sandvik Coromant 2S342-1588-305CMB 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2S342-1588-305CMB 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 7716363
Price: 6413.55 ZAR
Availability: InStock

Be the first to review this product

R 6 413,55 inc. vat

In stock

SKU

7716363

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	15.875mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	96mm
RPMX - Rotational Speed Maximum	251001/min
WT - Weight Of Item	0.223kg
OAL - Overall Length	96mm
OHX - Maximum Overhang	47.6mm
LSC - Clamping Length	48.4mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	3.048mm
H - Shank Height	14.22mm
LU - Usable Length	33.338mm
MHD - Mounting Hole Distance	24.209375mm
APMX - Depth Of Cut Maximum	33.338mm
DC - Cutting Diameter	15.875mm
DCF - Cutting Diameter Face Contact	9.779mm
FHA - Flute Helix Angle	38deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.100031496063
ORDCODE	2S342-1588-305CMB 1740
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_R6250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-08-26 11:21:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1740
COATING	PVD AlTiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
