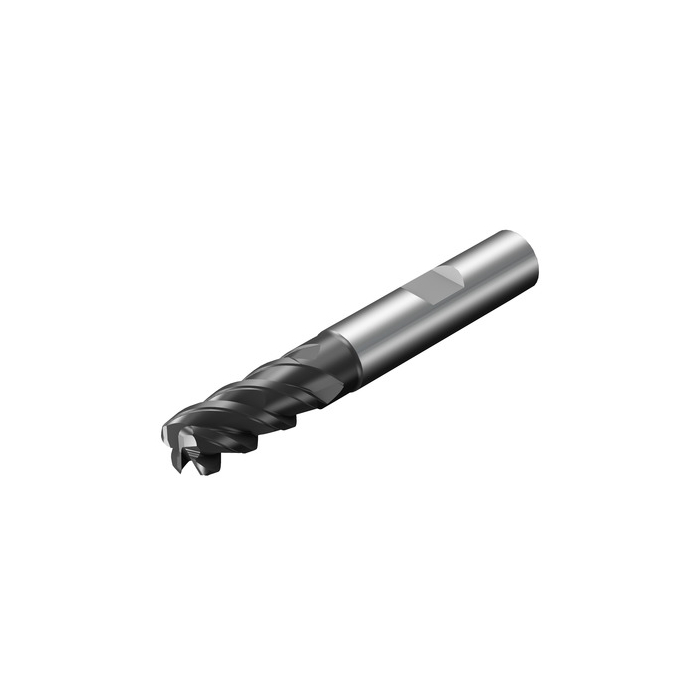

Sandvik Coromant 2S440-0300-030-SD 1725 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
R 1 562,85
inc. vat
In stock
SKU
7858136
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 57mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.012kg |
OAL - Overall Length | 57mm |
OHX - Maximum Overhang | 21mm |
LSC - Clamping Length | 36mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 0.3mm |
H - Shank Height | 5.1mm |
LU - Usable Length | 10mm |
MHD - Mounting Hole Distance | 18mm |
APMX - Depth Of Cut Maximum | 8mm |
DC - Cutting Diameter | 3mm |
DCF - Cutting Diameter Face Contact | 2.4mm |
DN - Neck Diameter | 2.9mm |
FHA - Flute Helix Angle | 48deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 3.333333333333 |
ORDCODE | 2S440-0300-030-SD 1725 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 10:38:00.000 |
STDLET - Standard Letter | HB |
STDNO - Standard Number | ISO3338-2 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1725 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | VFD |
BSG - Basic Standard Group | DIN 6527 L |
ZEFP - Peripheral Effective Cutting Edge Count | 3 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
