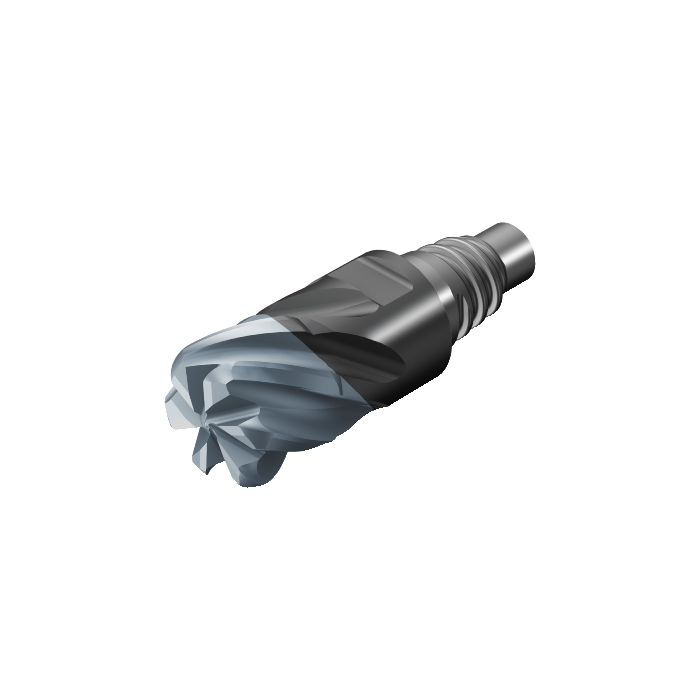

Sandvik Coromant 316-10FM635-10020D 6060 CoroMill™ 316 brazed ceramic head for High Speed roughing

R 4 890,95 inc. vat
In stock
SKU
7592929
CoroMill® 316 brazed ceramic head for High Speed roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 brazed ceramic head for High Speed roughing
More Information
DCON - Connection Diameter 9.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 15.9mm
BHTA - Body Half Taper Angle 0deg
RPMX - Rotational Speed Maximum 350001/min
WT - Weight Of Item 0.025kg
OAL - Overall Length 27.1mm
OHX - Maximum Overhang 15.9mm
KAPR - Tool Cutting Edge Angle 90deg
RE - Corner Radius 2mm
LU - Usable Length 7mm
APMX - Depth Of Cut Maximum 7mm
DC - Cutting Diameter 10mm
DCF - Cutting Diameter Face Contact 6mm
DN - Neck Diameter 9.7mm
FHA - Flute Helix Angle 35deg
GAMF - Radial Rake Angle -5deg
GAMP - Axial Rake Angle 2deg
ULDR - Usable Length Diameter Ratio 0.7
ORDCODE 316-10FM635-10020D 6060
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0100_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-09-19 12:00:00.000
Hand R
Grade 6060
SUBSTRATE CS
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
