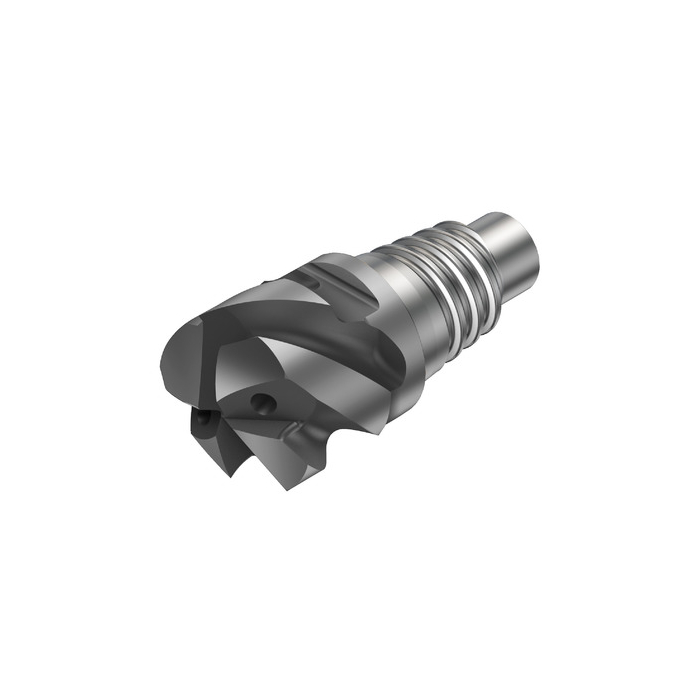

Sandvik Coromant 316-10HM450-10015P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling Previous Sandvik Coromant 316-10HM450-10015P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling

Sandvik Coromant 316-10HM450C10015P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling

R 1 443,25 inc. vat
In stock
SKU
7611692
CoroMill® 316 solid carbide head for High Feed Face milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for High Feed Face milling
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 9.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 12.4mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.022kg
OAL - Overall Length 23.6mm
OHX - Maximum Overhang 12.4mm
KAPR - Tool Cutting Edge Angle 32.69deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 5mm
LU - Usable Length 12.4mm
APMX - Depth Of Cut Maximum 0.7mm
DC - Cutting Diameter 10mm
DCF - Cutting Diameter Face Contact 3.4mm
DN - Neck Diameter 9.7mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 6deg
ULDR - Usable Length Diameter Ratio 1.24
REEQ - Corner Radius Equivalent 1.99mm
ORDCODE 316-10HM450C10015P 1730
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0100_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 2
CHANGEDATE 2022-07-08 14:05:00.000
Hand R
Grade 1730
COATING PVD AlTiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
