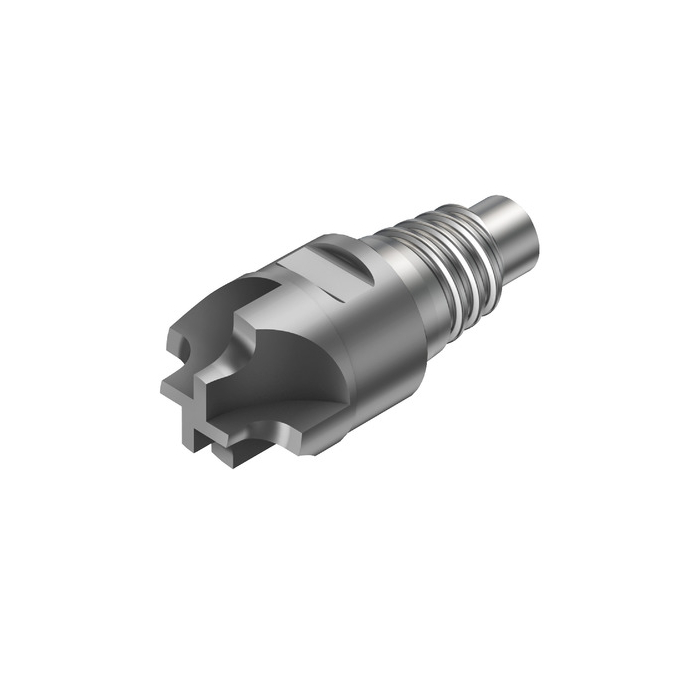

Sandvik Coromant 316-10UM400-10030G 1730 CoroMill™ 316 solid carbide head with quarter circle profile
R 1 442,10
inc. vat
In stock
SKU
7611711
CoroMill® 316 solid carbide head with quarter circle profile
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head with quarter circle profile
DCON - Connection Diameter | 9.7mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 12.4mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.026kg |
OAL - Overall Length | 23.6mm |
OHX - Maximum Overhang | 12.4mm |
APMX - Depth Of Cut Maximum | 3mm |
DC - Cutting Diameter | 4mm |
DN - Neck Diameter | 9.7mm |
GAMF - Radial Rake Angle | 1deg |
GAMP - Axial Rake Angle | 0deg |
DCX - Maximum Cutting Diameter | 10mm |
PRFRAD - Profile Radius | 3mm |
ORDCODE | 316-10UM400-10030G 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0100_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-22 16:07:00.000 |
Hand | R |
Grade | 1730 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
