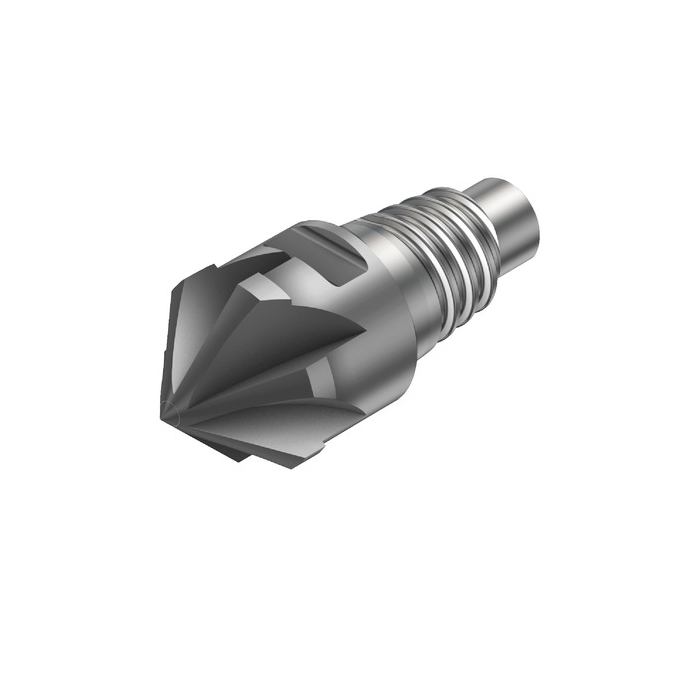

Sandvik Coromant 316-12CM600-12060G 1730 CoroMill™ 316 solid carbide head for chamfer milling

R 1 982,60 inc. vat
In stock
SKU
7611721
CoroMill® 316 solid carbide head for chamfer milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for chamfer milling
More Information
DCON - Connection Diameter 11.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 14.5mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.034kg
OAL - Overall Length 28.3mm
OHX - Maximum Overhang 14.5mm
KAPR - Tool Cutting Edge Angle 60deg
APMX - Depth Of Cut Maximum 6.5mm
DC - Cutting Diameter 4.5mm
DN - Neck Diameter 11.7mm
GAMF - Radial Rake Angle 1deg
GAMP - Axial Rake Angle 0deg
DCX - Maximum Cutting Diameter 12mm
ORDCODE 316-12CM600-12060G 1730
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0120_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-12-22 16:07:00.000
Hand R
Grade 1730
COATING PVD AlTiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
