Sandvik Coromant 316-12FL642-12020L 1745 CoroMill™ 316 solid carbide head for High Feed Side milling

R 3 030,25 inc. vat
In stock
SKU
7488151

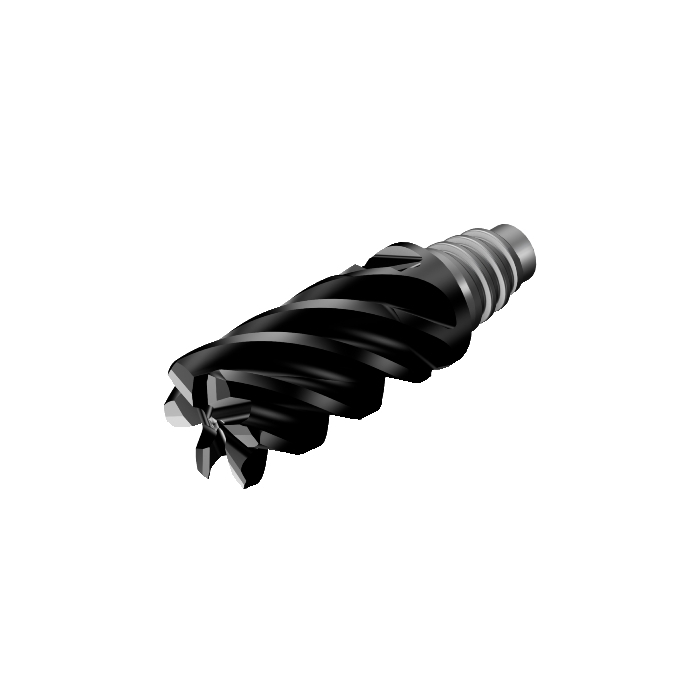

CoroMill® 316 solid carbide head for High Feed Side milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for High Feed Side milling
More Information
DCON - Connection Diameter 11.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 27.4mm
RPMX - Rotational Speed Maximum 350001/min
WT - Weight Of Item 0.042kg
OAL - Overall Length 41.2mm
OHX - Maximum Overhang 27.4mm
KAPR - Tool Cutting Edge Angle 90deg
RE - Corner Radius 2mm
APMX - Depth Of Cut Maximum 18mm
DC - Cutting Diameter 12mm
DCF - Cutting Diameter Face Contact 8mm
DN - Neck Diameter 11.7mm
FHA - Flute Helix Angle 42deg
GAMF - Radial Rake Angle 5deg
GAMP - Axial Rake Angle 5deg
ORDCODE 316-12FL642-12020L 1745
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0120_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 10:18:00.000
Hand R
Grade 1745
COATING PVD TiAlSiN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential True
