Sandvik Coromant 316-12FM650-12000L 1030 CoroMill™ 316 solid carbide head for Finishing Previous Sandvik Coromant 316-12FM650-12000L 1030 CoroMill™ 316 solid carbide head for Finishing

Sandvik Coromant 316-12FM650-12010L 1030 CoroMill™ 316 solid carbide head for Finishing

R 1 652,55 inc. vat
Out of stock
SKU
5758384

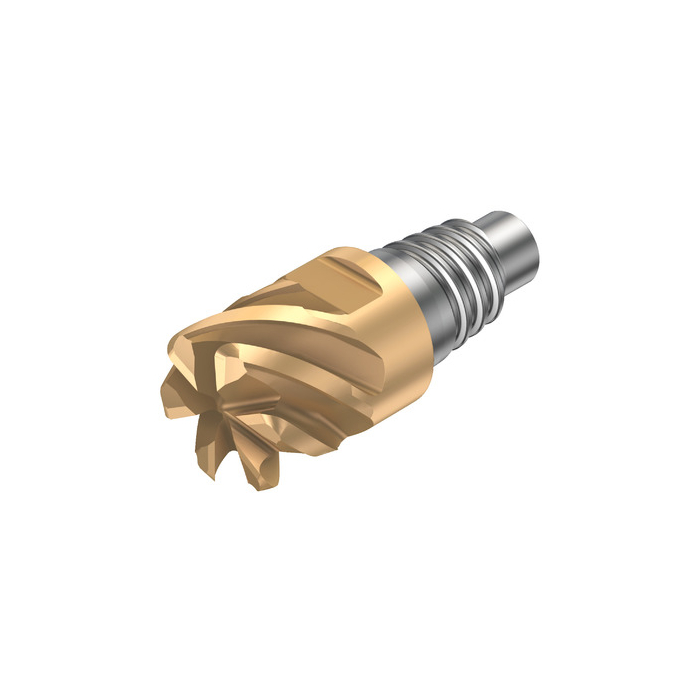

CoroMill® 316 solid carbide head for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Finishing
More Information
DCON - Connection Diameter 11.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 14.5mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.037kg
OAL - Overall Length 28.3mm
OHX - Maximum Overhang 14.5mm
KAPR - Tool Cutting Edge Angle 90deg
RE - Corner Radius 1mm
APMX - Depth Of Cut Maximum 6.5mm
DC - Cutting Diameter 12mm
DCF - Cutting Diameter Face Contact 10mm
DN - Neck Diameter 11.7mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ORDCODE 316-12FM650-12010L 1030
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0120_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:42:00.000
Hand R
Grade 1030
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
