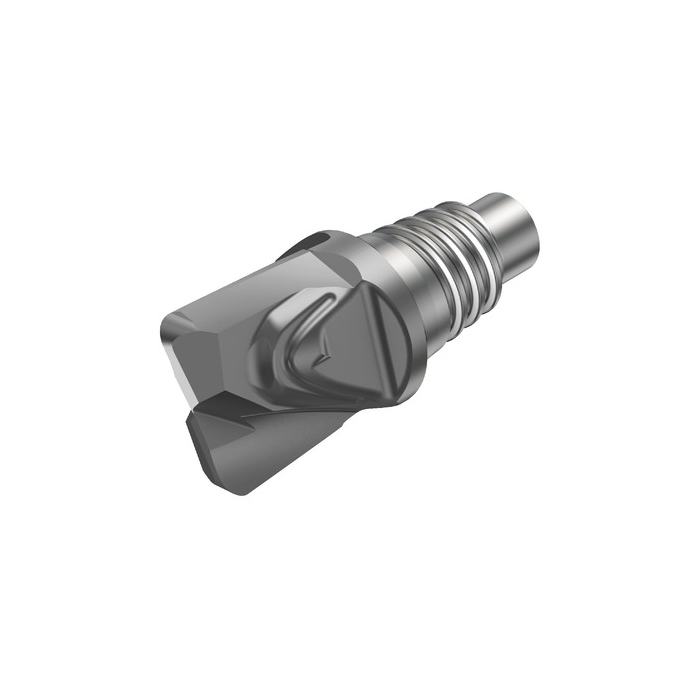

Sandvik Coromant 316-12SM210-12008P 1730 CoroMill™ 316 solid carbide head for High Chip Load milling

R 1 052,25 inc. vat
In stock
SKU
7611728
CoroMill® 316 solid carbide head for High Chip Load milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for High Chip Load milling
More Information
DCON - Connection Diameter 11.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 14mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.033kg
OAL - Overall Length 27.8mm
OHX - Maximum Overhang 14mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 0.8mm
APMX - Depth Of Cut Maximum 10mm
DC - Cutting Diameter 12mm
DCF - Cutting Diameter Face Contact 10.4mm
DN - Neck Diameter 11.7mm
FHA - Flute Helix Angle 10deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 7deg
ORDCODE 316-12SM210-12008P 1730
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0120_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 10:19:00.000
Hand R
Grade 1730
COATING PVD AlTiN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
