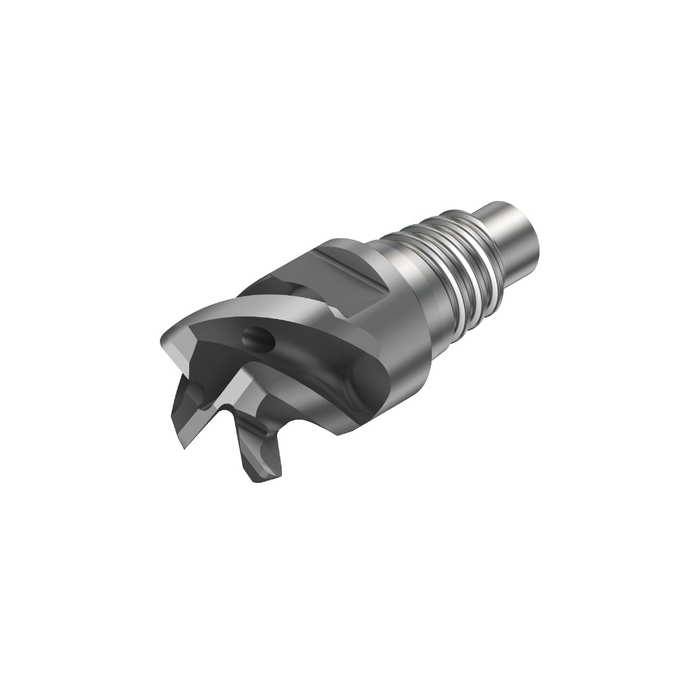

Sandvik Coromant 316-12SM450C12030P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
R 1 804,35
inc. vat
In stock
SKU
7611741
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 11.7mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 14.5mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.031kg |
OAL - Overall Length | 28.3mm |
OHX - Maximum Overhang | 14.5mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 3mm |
APMX - Depth Of Cut Maximum | 7.5mm |
DC - Cutting Diameter | 12mm |
DCF - Cutting Diameter Face Contact | 6mm |
DN - Neck Diameter | 11.7mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ORDCODE | 316-12SM450C12030P 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0120_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 10:29:00.000 |
Hand | R |
Grade | 1730 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | True |
