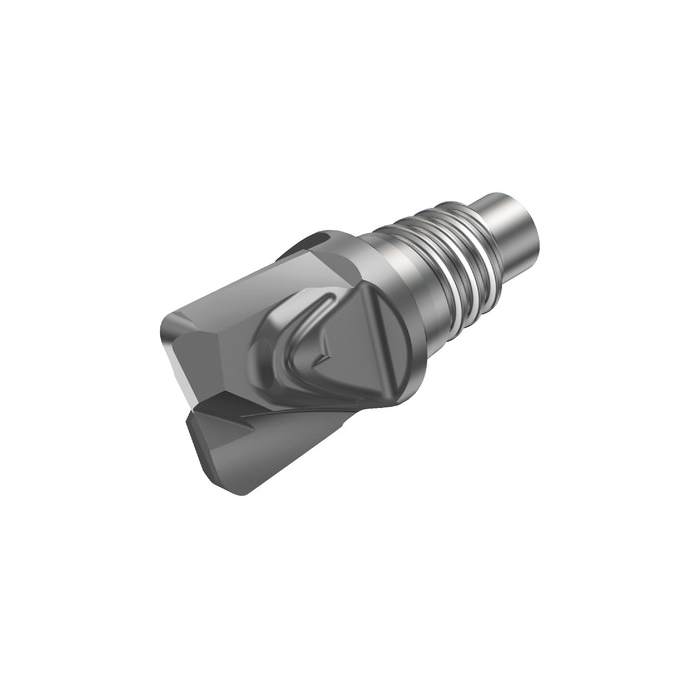

Sandvik Coromant 316-16SM210-16005P 1730 CoroMill™ 316 solid carbide head for High Chip Load milling

Name: Sandvik Coromant 316-16SM210-16005P 1730 CoroMill™ 316 solid carbide head for High Chip Load milling
SKU: 7611755
Price: 1631.85 ZAR
Availability: InStock

Be the first to review this product

R 1 631,85 inc. vat

In stock

SKU

7611755

CoroMill® 316 solid carbide head for High Chip Load milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for High Chip Load milling

More Information

More Information
DCON - Connection Diameter	15.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	18.1mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.055kg
OAL - Overall Length	35.1mm
OHX - Maximum Overhang	18.1mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0.5mm
APMX - Depth Of Cut Maximum	13mm
DC - Cutting Diameter	16mm
DCF - Cutting Diameter Face Contact	15mm
DN - Neck Diameter	15.5mm
FHA - Flute Helix Angle	10deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	7deg
ORDCODE	316-16SM210-16005P 1730
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0160_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:19:00.000
Hand	R
Grade	1730
COATING	PVD AlTiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
