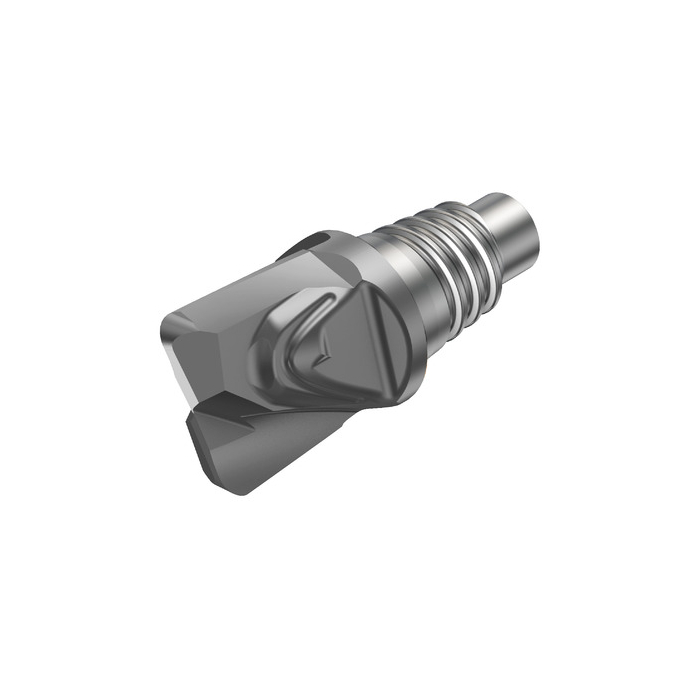

Sandvik Coromant 316-16SM210-16010P 1730 CoroMill™ 316 solid carbide head for High Chip Load milling
R 1 631,85
inc. vat
In stock
SKU
7611757
CoroMill® 316 solid carbide head for High Chip Load milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for High Chip Load milling
| DCON - Connection Diameter | 15.5mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 18.1mm |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.055kg |
| OAL - Overall Length | 35.1mm |
| OHX - Maximum Overhang | 18.1mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 5deg |
| RE - Corner Radius | 1mm |
| APMX - Depth Of Cut Maximum | 13mm |
| DC - Cutting Diameter | 16mm |
| DCF - Cutting Diameter Face Contact | 14mm |
| DN - Neck Diameter | 15.5mm |
| FHA - Flute Helix Angle | 10deg |
| GAMF - Radial Rake Angle | 10.5deg |
| GAMP - Axial Rake Angle | 7deg |
| ORDCODE | 316-16SM210-16010P 1730 |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0160_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-04-22 10:19:00.000 |
| Hand | R |
| Grade | 1730 |
| COATING | PVD AlTiN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CCC - Center Cutting Capability | True |
| CPDF - Cutting Pitch Differential | False |
