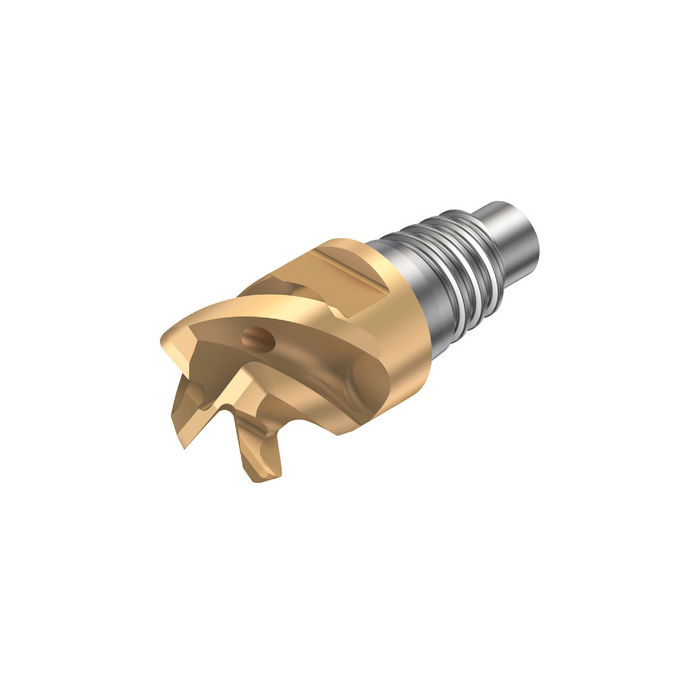

Sandvik Coromant 316-16SM450C16005P 1030 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling

Name: Sandvik Coromant 316-16SM450C16005P 1030 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
SKU: 6223967
Price: 2795.65 ZAR
Availability: OutOfStock

Be the first to review this product

R 2 795,65 inc. vat

Out of stock

SKU

6223967

CoroMill® 316 solid carbide head for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for Stable Multi-Operations milling

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	15.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	18.7mm
RPMX - Rotational Speed Maximum	400001/min
WT - Weight Of Item	0.055kg
OAL - Overall Length	35.7mm
OHX - Maximum Overhang	18.7mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0.5mm
APMX - Depth Of Cut Maximum	10mm
DC - Cutting Diameter	16mm
DCF - Cutting Diameter Face Contact	15mm
DN - Neck Diameter	15.5mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ORDCODE	316-16SM450C16005P 1030
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:59:00.000
Hand	R
Grade	1030
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
