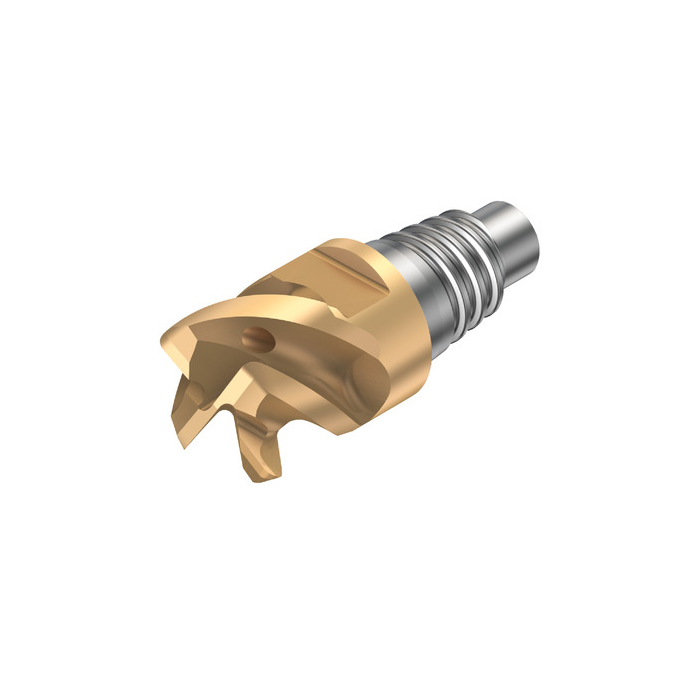

Sandvik Coromant 316-16SM450C16030P 1030 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling

R 2 795,65 inc. vat
Out of stock
SKU
6223971
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 15.5mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 18.7mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.052kg
OAL - Overall Length 35.7mm
OHX - Maximum Overhang 18.7mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 3mm
APMX - Depth Of Cut Maximum 10mm
DC - Cutting Diameter 16mm
DCF - Cutting Diameter Face Contact 10mm
DN - Neck Diameter 15.5mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ORDCODE 316-16SM450C16030P 1030
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0160_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:45:00.000
Hand R
Grade 1030
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential True
