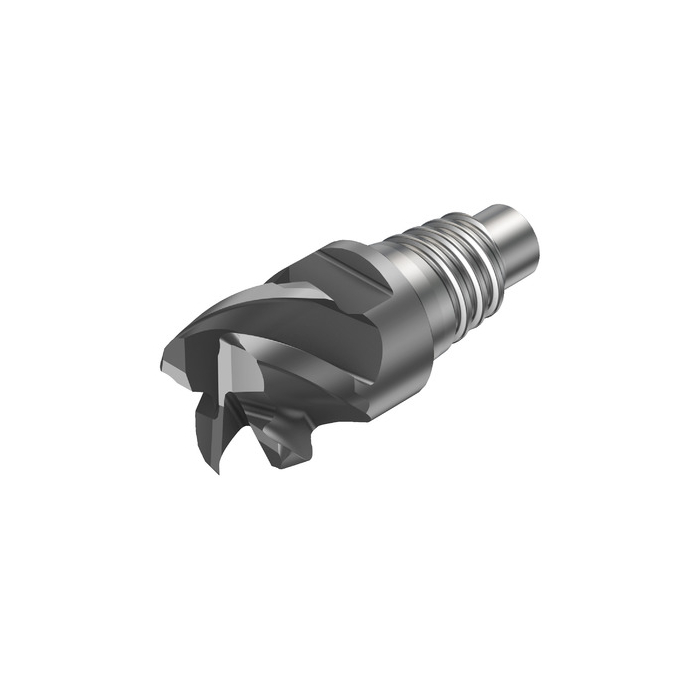

Sandvik Coromant 316-25SM550-25020P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling

Name: Sandvik Coromant 316-25SM550-25020P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
SKU: 7611805
Price: 3803.05 ZAR
Availability: InStock

Be the first to review this product

R 3 803,05 inc. vat

In stock

SKU

7611805

CoroMill® 316 solid carbide head for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for Stable Multi-Operations milling

More Information

More Information
DCON - Connection Diameter	24.2mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	25.6mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.207kg
OAL - Overall Length	49.6mm
OHX - Maximum Overhang	25.6mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	2mm
APMX - Depth Of Cut Maximum	13.5mm
DC - Cutting Diameter	25mm
DCF - Cutting Diameter Face Contact	21mm
DN - Neck Diameter	24.2mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ORDCODE	316-25SM550-25020P 1730
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:30:00.000
Hand	R
Grade	1730
COATING	PVD AlTiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	VFD
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
