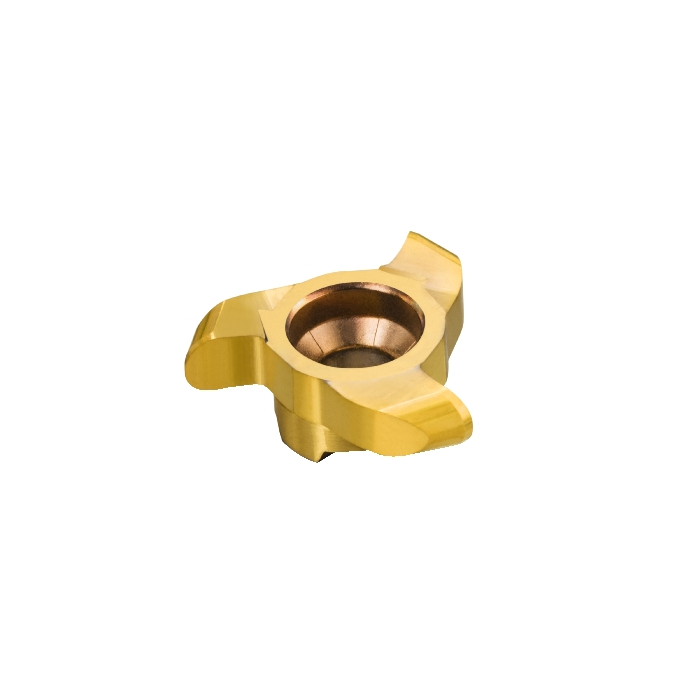

Sandvik Coromant 327R12-22 30015-RM 1025 CoroMill™ 327 solid carbide head for grooving
R 923,45
inc. vat
In stock
SKU
5758810
CoroMill® 327 solid carbide head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 327 solid carbide head for grooving
| DCON - Connection Diameter | 12mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 5.75mm |
| RPMX - Rotational Speed Maximum | 500001/min |
| WT - Weight Of Item | 8.3g |
| OAL - Overall Length | 5.75mm |
| OHX - Maximum Overhang | 5.75mm |
| RE - Corner Radius | 1.5mm |
| CW - Cutting Width | 3mm |
| CWTOLL - Cutting Width Lower Tolerance | 0mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.03mm |
| CDX - Cutting Depth Maximum | 4.5mm |
| DC - Cutting Diameter | 21.7mm |
| FHA - Flute Helix Angle | 0deg |
| GAMF - Radial Rake Angle | 1.5deg |
| GAMP - Axial Rake Angle | 0deg |
| ORDCODE | 327R12-22 30015-RM 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_CM3271_C0120_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-06-23 11:41:00.000 |
| Hand | R |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
