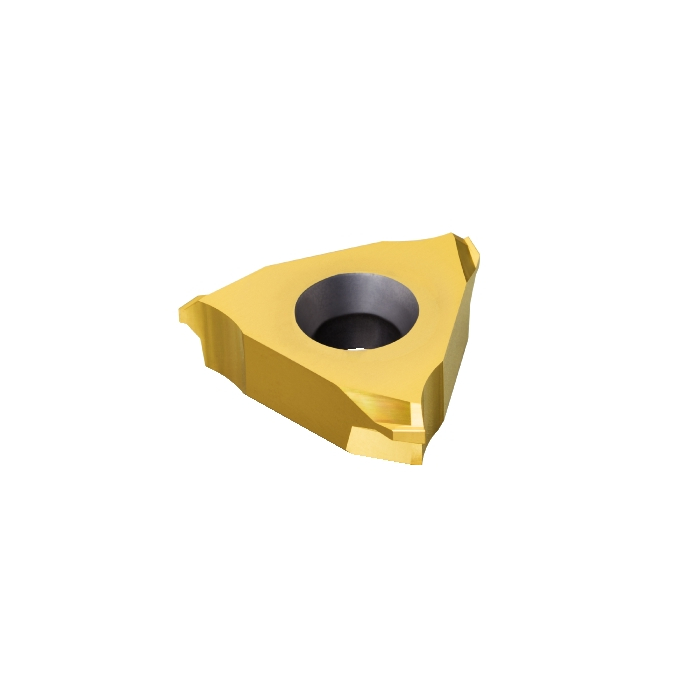

Sandvik Coromant 328R13-415 4520-GC 1025 CoroMill™ 328 insert for groove milling
R 923,45
inc. vat
In stock
SKU
6010143
CoroMill® 328 insert for groove milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 328 insert for groove milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 13.4g |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 6deg |
| Insert Thickness | 5.15mm |
| CW - Cutting Width | 4.15mm |
| CWTOLL - Cutting Width Lower Tolerance | 0.09mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.11mm |
| REL - Corner Radius Left | 0.15mm |
| RER - Corner Radius Right | 0.15mm |
| CDX - Cutting Depth Maximum | 2mm |
| RETOLL - Corner Radius Lower Tolerance | -0.05mm |
| RETOLU - Corner Radius Upper Tolerance | 0.05mm |
| ORDCODE | 328R13-415 4520-GC 1025 |
| CHANGEDATE | 2022-09-23 18:09:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 13 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MV13_1 |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | GC |
| CEDC - Cutting Edge Count | 3 |
