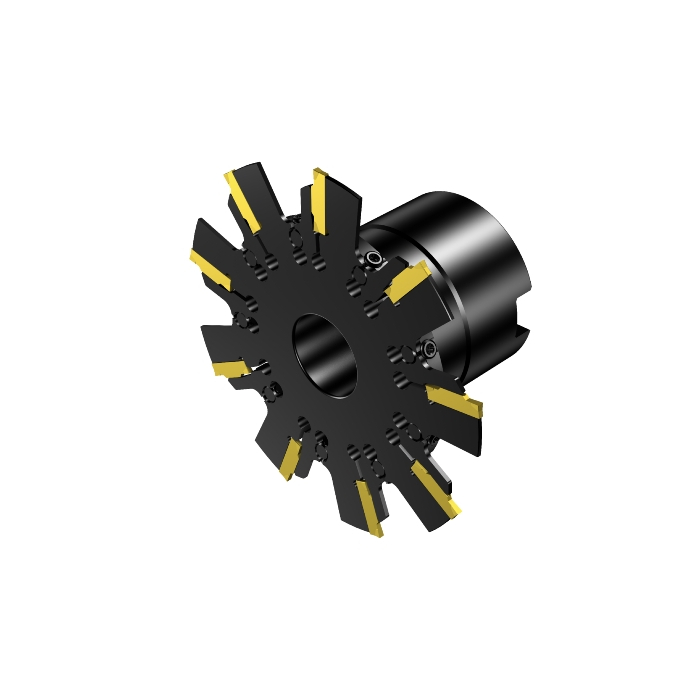

Sandvik Coromant 329-100Q22-F CoroMill™ 329 groove milling cutter
Previous
Sandvik Coromant 329-100Q22-G CoroMill™ 329 groove milling cutter
R 15 964,30
inc. vat
Out of stock
SKU
5758880
CoroMill® 329 groove milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 329 groove milling cutter
| DCON - Connection Diameter | 22mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 50mm |
| BD - Body Diameter | 42mm |
| LB - Body Length | 50mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 43001/min |
| WT - Weight Of Item | 1.043kg |
| OAL - Overall Length | 50mm |
| OHX - Maximum Overhang | 50mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| Insert Thickness | 4.3321mm |
| CW - Cutting Width | 3mm |
| CDX - Cutting Depth Maximum | 15mm |
| DC - Cutting Diameter | 100mm |
| DHUB - Hub Diameter | 42mm |
| ORDCODE | 329-100Q22-G |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_G2200_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 01:00:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCG2_8 |
| Hand | R |
| MIID - Master Insert Identification | N123G2-0300- |
| SSC - Insert Seat Size Code | G |
| CICT - Cutting Item Count | 6 |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
