R 9 427,70
inc. vat
In stock
SKU
5759005

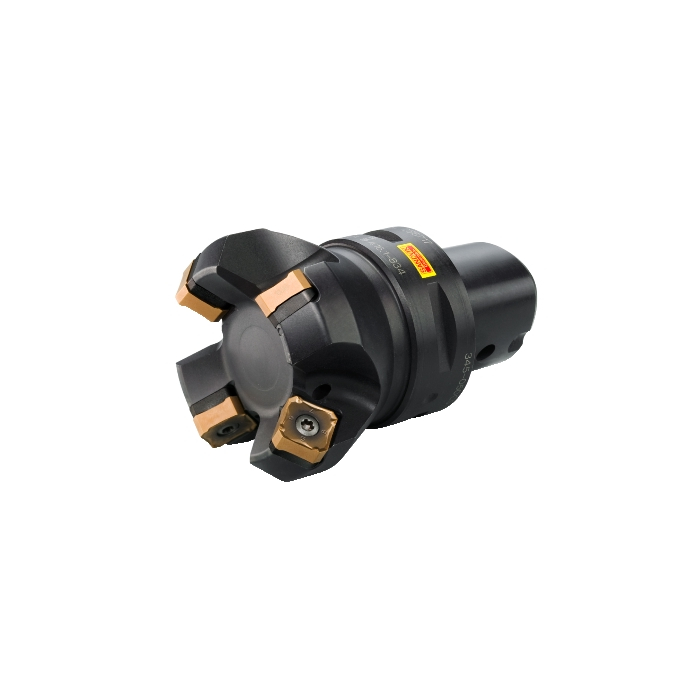

CoroMill® 345 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 345 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 60mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 196001/min |
WT - Weight Of Item | 0.602kg |
OAL - Overall Length | 84mm |
OHX - Maximum Overhang | 60mm |
KAPR - Tool Cutting Edge Angle | 45deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | 12.3deg |
LAMS - Inclination Angle | 3.5deg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 13mm |
Insert Thickness | 5.05mm |
APMX - Depth Of Cut Maximum | 6mm |
DC - Cutting Diameter | 40mm |
DCF - Cutting Diameter Face Contact | 40mm |
GAMF - Radial Rake Angle | 6.32969823deg |
GAMP - Axial Rake Angle | 11.16787426deg |
DCX - Maximum Cutting Diameter | 54.08mm |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | 345-040C4-13M |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0400_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-04 11:47:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_ME1305_1 |
Hand | R |
MIID - Master Insert Identification | 345R-1305 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 13 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
