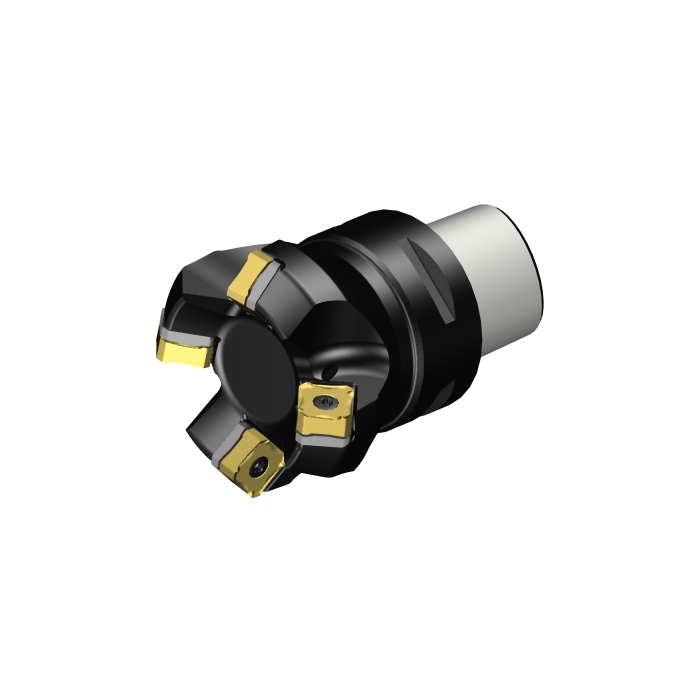

Sandvik Coromant 345-050C5-13M CoroMill™ 345 face milling cutter

R 10 153,35 inc. vat
In stock
SKU
5759251
CoroMill® 345 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 345 face milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 35mm
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 175001/min
WT - Weight Of Item 0.942kg
OAL - Overall Length 90mm
OHX - Maximum Overhang 60mm
KAPR - Tool Cutting Edge Angle 45deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle 12.3deg
LAMS - Inclination Angle 3.5deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 13mm
Insert Thickness 5.05mm
APMX - Depth Of Cut Maximum 6mm
DC - Cutting Diameter 50mm
DCF - Cutting Diameter Face Contact 50mm
GAMF - Radial Rake Angle 6.32969823deg
GAMP - Axial Rake Angle 11.16787426deg
DCX - Maximum Cutting Diameter 64.08mm
AZ - Maximum Plunge Depth 0mm
ORDCODE 345-050C5-13M
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0500_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-05-04 11:48:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_ME1305_1
Hand R
MIID - Master Insert Identification 345R-1305
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 13
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
