R 346,15
inc. vat
In stock
SKU
7101114
CoroMill® 345 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days

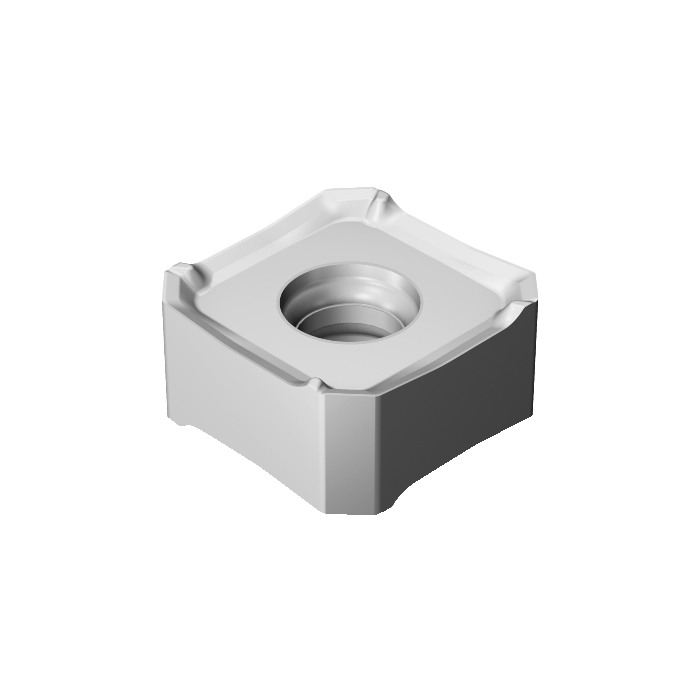

CoroMill® 345 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.01kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 13mm |
RE - Corner Radius | 0.8mm |
Insert Thickness | 5.45mm |
D1 - Fixing Hole Diameter | 4.8mm |
LE - Cutting Edge Effective Length | 8.8mm |
L - Cutting Edge Length | 13mm |
KRINS - Major Cutting Edge Angle | 45deg |
BS - Wiper Edge Length | 2mm |
GAN - Insert Rake Angle | 24deg |
APMX - Depth Of Cut Maximum | 6mm |
BSR - Wiper Edge Radius | 107mm |
ORDCODE | 345R-13T5M-MM 1130 |
CHANGEDATE | 2022-09-23 20:31:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 13 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_ME13T5_1 |
Grade | 1130 |
COATING | PVD AlTiCrN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MM |
CEDC - Cutting Edge Count | 8 |
WEP - Wiper Edge Property | True |
