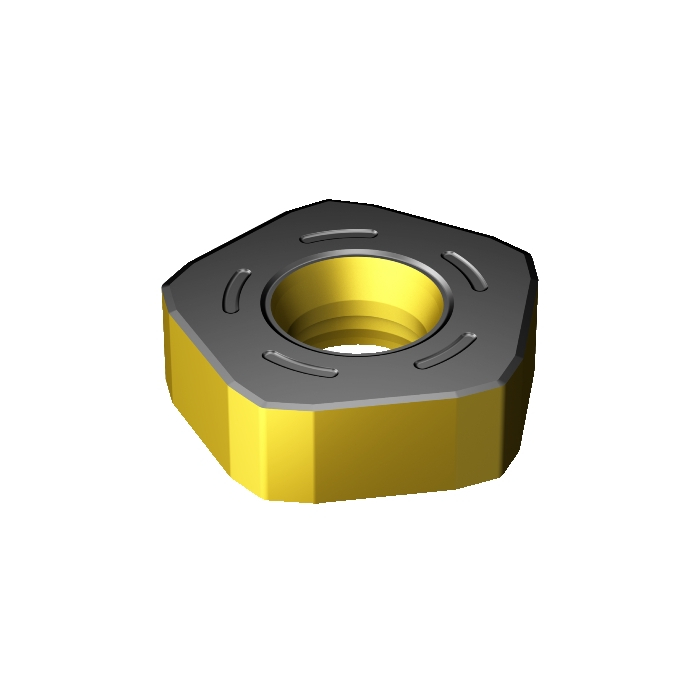

Sandvik Coromant 357N-2408M-KH 3330 CoroMill™ 357 insert for milling
R 885,50
inc. vat
In stock
SKU
6428131
CoroMill® 357 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 357 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 50.1g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 24.4mm |
| RE - Corner Radius | 1mm |
| Insert Thickness | 7.94mm |
| D1 - Fixing Hole Diameter | 10mm |
| LE - Cutting Edge Effective Length | 13mm |
| L - Cutting Edge Length | 17.727638mm |
| KRINS - Major Cutting Edge Angle | 57deg |
| BS - Wiper Edge Length | 3mm |
| GAN - Insert Rake Angle | 0deg |
| APMX - Depth Of Cut Maximum | 10mm |
| KCH - Corner Chamfer | 14.9deg |
| CHW - Corner Chamfer Width | 2.6mm |
| BSR - Wiper Edge Radius | 80mm |
| ORDCODE | 357N-2408M-KH 3330 |
| CHANGEDATE | 2022-09-23 19:09:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | P |
| SSC - Insert Seat Size Code | 24 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NK2408_1 |
| Grade | 3330 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | KH |
| CEDC - Cutting Edge Count | 10 |
| WEP - Wiper Edge Property | True |
