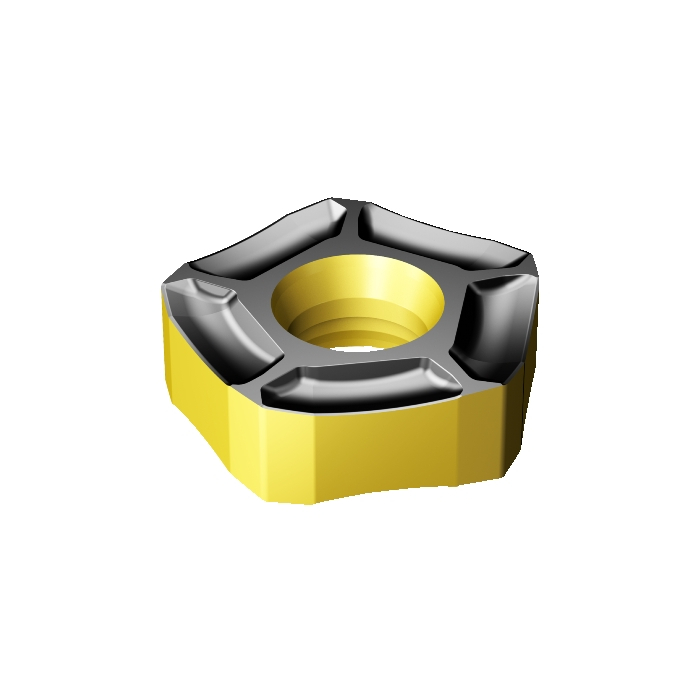

Sandvik Coromant 357R-2408M-PM 4230 CoroMill™ 357 insert for milling Previous Sandvik Coromant 357R-2408M-PM 4230 CoroMill™ 357 insert for milling

Sandvik Coromant 357R-2408M-PM 4220 CoroMill™ 357 insert for milling

R 885,50 inc. vat
In stock
SKU
6293218
CoroMill® 357 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 357 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 43.4g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 24.4mm
RE - Corner Radius 1mm
Insert Thickness 7.94mm
D1 - Fixing Hole Diameter 10mm
LE - Cutting Edge Effective Length 13mm
L - Cutting Edge Length 17.727638mm
KRINS - Major Cutting Edge Angle 57deg
BS - Wiper Edge Length 3mm
GAN - Insert Rake Angle 15deg
APMX - Depth Of Cut Maximum 10mm
KCH - Corner Chamfer 14.9deg
CHW - Corner Chamfer Width 2.6mm
BSR - Wiper Edge Radius 80mm
ORDCODE 357R-2408M-PM 4220
CHANGEDATE 2022-09-23 19:08:00.000
Hand R
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code P
SSC - Insert Seat Size Code 24
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_NK2408_1
Grade 4220
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PM
CEDC - Cutting Edge Count 10
WEP - Wiper Edge Property True
