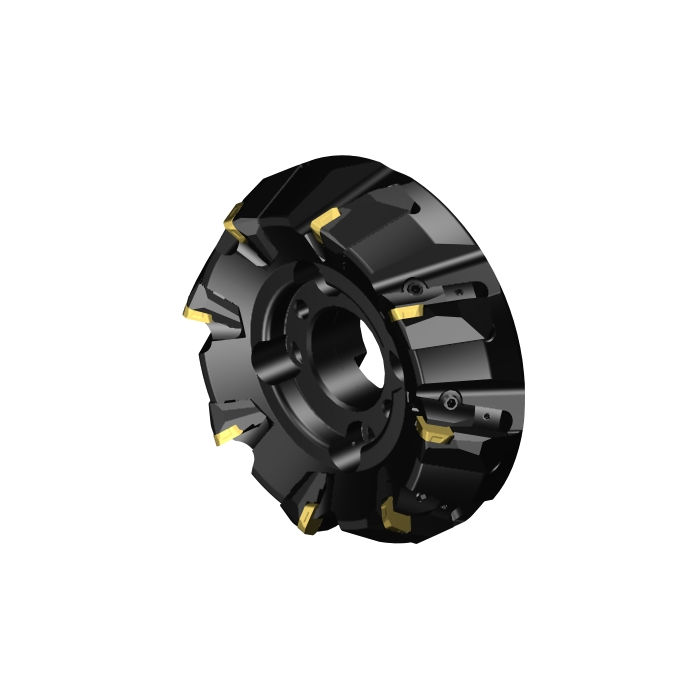

Sandvik Coromant 360-250Q60-Z10D19 CoroMill™ 360 face milling cutter
Next
Sandvik Coromant 360-400Q60-Z15D28 CoroMill™ 360 face milling cutter
Previous
![Sandvik Coromant 360-250Q60-Z10D19 CoroMill™ 360 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6479744b0/sandvik-coromant-360-250q60-z10d19-coromilltm-360-face-milling-cutter.jpg)
![Sandvik Coromant 360-400Q60-Z15D28 CoroMill™ 360 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64795e1c6/sandvik-coromant-360-400q60-z15d28-coromilltm-360-face-milling-cutter.jpg)
R 31 482,40
inc. vat
In stock
SKU
5758952
CoroMill® 360 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 360 face milling cutter
DCON - Connection Diameter | 60mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 80mm |
BD - Body Diameter | 226.6mm |
LB - Body Length | 13mm |
TQ - Torque | 16Nm |
RPMX - Rotational Speed Maximum | 6401/min |
WT - Weight Of Item | 14.584kg |
OAL - Overall Length | 80mm |
OHX - Maximum Overhang | 80mm |
DBC - Diameter Bolt Circle | 101.6mm |
KAPR - Tool Cutting Edge Angle | 60deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | -4.6deg |
LAMS - Inclination Angle | 18.1deg |
IC - Inscribed Circle Diameter | 18.94mm |
Insert Thickness | 6.35mm |
APMX - Depth Of Cut Maximum | 13mm |
DC - Cutting Diameter | 200mm |
DCF - Cutting Diameter Face Contact | 200mm |
GAMF - Radial Rake Angle | -13.12155701deg |
GAMP - Axial Rake Angle | 13.6490418deg |
DCX - Maximum Cutting Diameter | 215mm |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | 360-200Q60-Z8D19 |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1C4_G6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-24 02:20:00.000 |
STDLET - Standard Letter | C |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | W |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MF1906_1 |
Hand | R |
MIID - Master Insert Identification | 360R-1906 |
IFS - Insert Mounting Style Code | 1 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 19 |
CICT - Cutting Item Count | 8 |
ZEFP - Peripheral Effective Cutting Edge Count | 8 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
