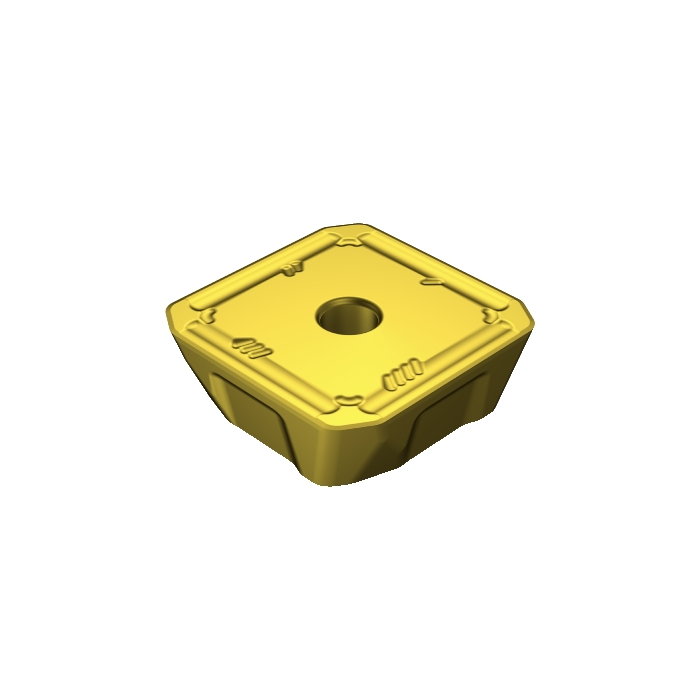

Sandvik Coromant 360R-19 06M-MH 2040 CoroMill™ 360 insert for milling
R 524,40
inc. vat
In stock
SKU
5759205
CoroMill® 360 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 360 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 25.5g |
| IC - Inscribed Circle Diameter | 18.94mm |
| RE - Corner Radius | 1.6mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 3.8mm |
| LE - Cutting Edge Effective Length | 15mm |
| L - Cutting Edge Length | 18.94mm |
| KRINS - Major Cutting Edge Angle | 60deg |
| BS - Wiper Edge Length | 2.2mm |
| GAN - Insert Rake Angle | 0deg |
| APMX - Depth Of Cut Maximum | 13mm |
| BSR - Wiper Edge Radius | 200mm |
| ORDCODE | 360R-19 06M-MH 2040 |
| CHANGEDATE | 2022-09-23 17:44:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 19 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MF1906_1 |
| Grade | 2040 |
| COATING | CVD TiCrN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | MH |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
