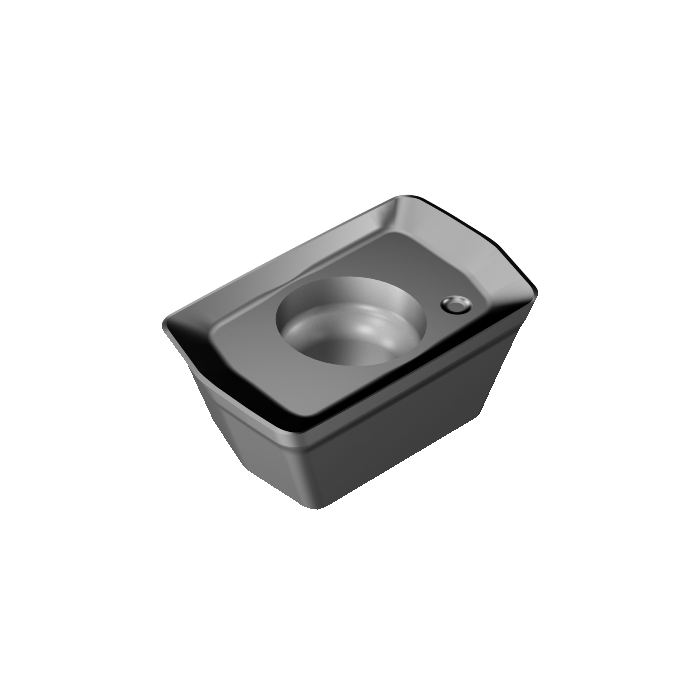

Sandvik Coromant 390R-070208E-ML S30T CoroMill™ 390 insert for milling
R 319,70
inc. vat
In stock
SKU
6851180
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1g |
| AN - Clearance Angle Major | 18deg |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 2.4mm |
| D1 - Fixing Hole Diameter | 2.05mm |
| LE - Cutting Edge Effective Length | 5.9mm |
| L - Cutting Edge Length | 6.92mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 0.7mm |
| GAN - Insert Rake Angle | 30deg |
| APMX - Depth Of Cut Maximum | 5.8mm |
| W1 - Insert Width | 4.06mm |
| ORDCODE | 390R-070208E-ML S30T |
| CHANGEDATE | 2022-04-06 04:43:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 07 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH0702_1 |
| Grade | S30T |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | ML |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
