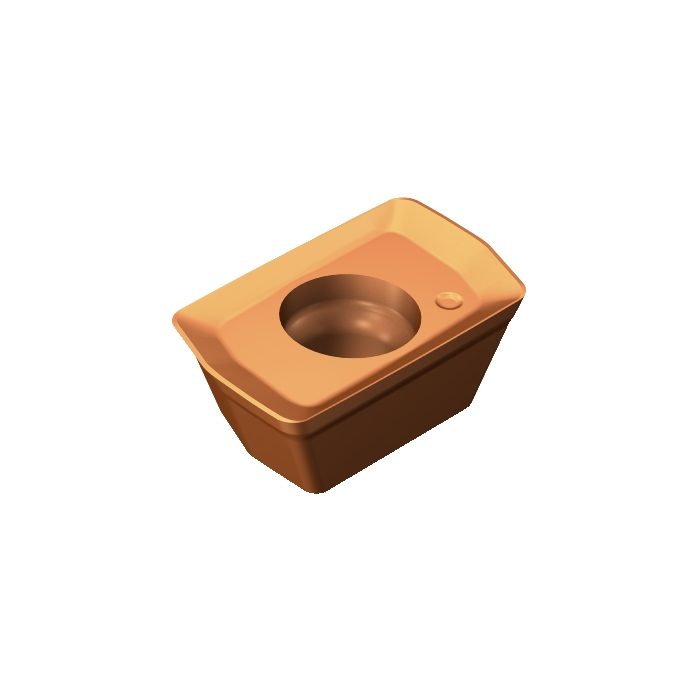

Sandvik Coromant 390R-070208M-KM 1020 CoroMill™ 390 insert for milling

Name: Sandvik Coromant 390R-070208M-KM 1020 CoroMill™ 390 insert for milling
SKU: 6851187
Price: 255.30 ZAR
Availability: InStock

R 255,30 inc. vat

In stock

SKU

6851187

CoroMill® 390 insert for milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 390 insert for milling

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	0.001kg
AN - Clearance Angle Major	18deg
RE - Corner Radius	0.8mm
Insert Thickness	2.4mm
D1 - Fixing Hole Diameter	2.05mm
LE - Cutting Edge Effective Length	5.9mm
L - Cutting Edge Length	6.92mm
KRINS - Major Cutting Edge Angle	90deg
BS - Wiper Edge Length	0.7mm
GAN - Insert Rake Angle	30deg
APMX - Depth Of Cut Maximum	5.8mm
W1 - Insert Width	4.06mm
ORDCODE	390R-070208M-KM 1020
CHANGEDATE	2022-09-23 19:31:00.000
Hand	R
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	07
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_MH0702_1
Grade	1020
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	KM
CEDC - Cutting Edge Count	2
WEP - Wiper Edge Property	True
