Sandvik Coromant 393.14-40 150 ER collet ER collet
R 1 138,50
inc. vat
In stock
SKU
5760475
ER collet
Reliable nationwide shipping
Delivery in 4 - 5 days
ER collet

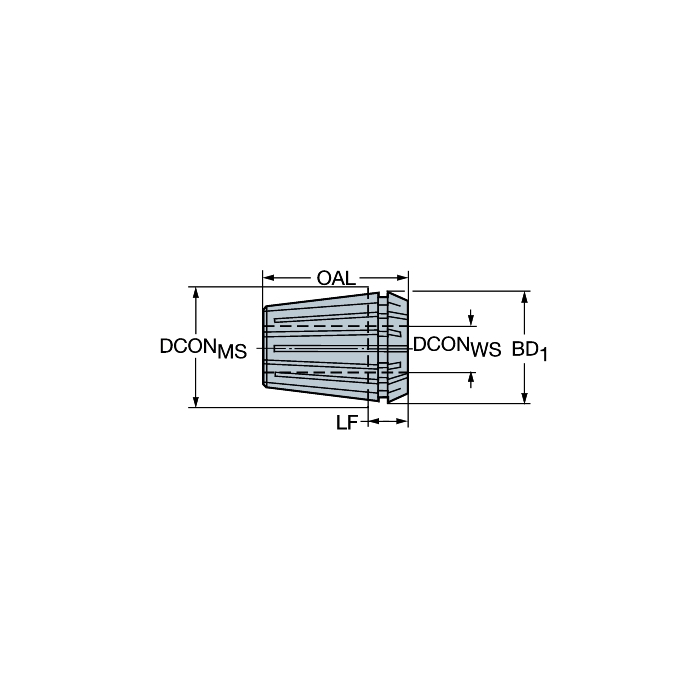

| CP - Coolant Pressure | 30000000Pa |
|---|---|
| DFC - Functional Diameter | 40mm |
| DCON - Connection Diameter | 41mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 14.66mm |
| BD - Body Diameter | 41mm |
| WT - Weight Of Item | 0.275kg |
| OAL - Overall Length | 46mm |
| OHX - Maximum Overhang | 14.66mm |
| LSC - Clamping Length | 46mm |
| DCONNWS - Connection Diameter Minimum Workpiece Side | 14mm |
| DCONXWS - Connection Diameter Maximum Workpiece Side | 15mm |
| ORDCODE | 393.14-40 150 |
| ADINTMS - Adaptive Interface Machine Direction | M_CLTERB_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLER2_G1500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-22 03:37:00.000 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| SEAL - Sealing Property | False |
