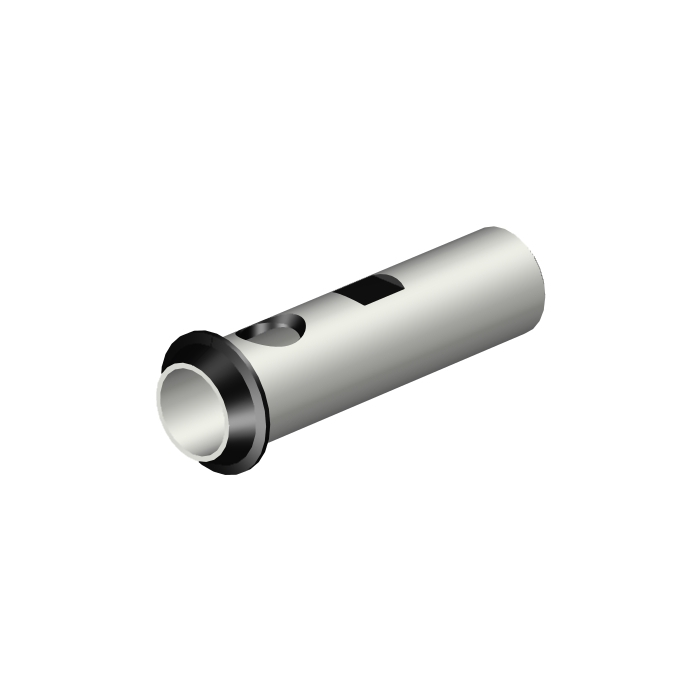

Sandvik Coromant 393.37A-20 16 072 Sleeve for fine boring head
R 3 131,45
inc. vat
In stock
SKU
5760694
Sleeve for fine boring head
Reliable nationwide shipping
Delivery in 4 - 5 days
Sleeve for fine boring head
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 16mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 6mm |
| BD - Body Diameter | 26mm |
| LB - Body Length | 6mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 0.092kg |
| OAL - Overall Length | 78mm |
| OHX - Maximum Overhang | 6mm |
| LSC - Clamping Length | 72mm |
| ORDCODE | 393.37A-20 16 072 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G2000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLS_G1600_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-07 05:51:00.000 |
| TCDCON - Connection Diameter Tolerance | g6 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| SEAL - Sealing Property | False |
