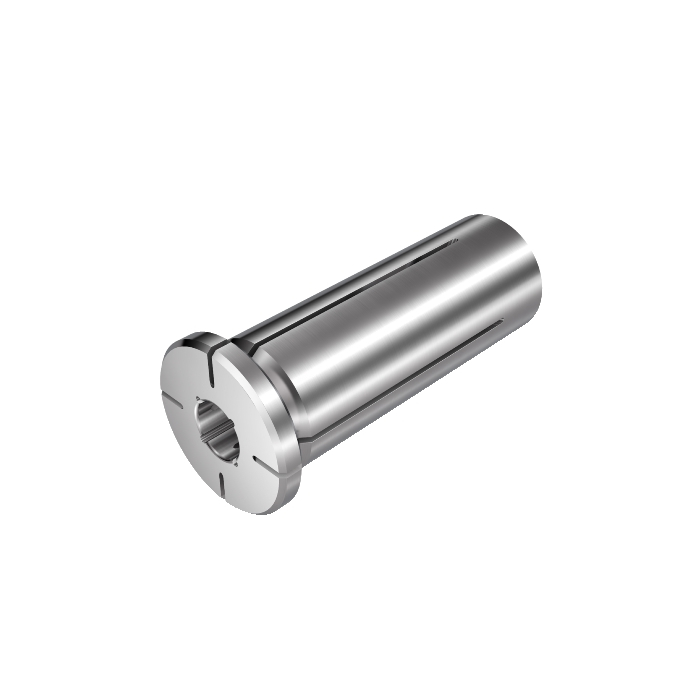

Sandvik Coromant 393.CF-20 08 50 Cylindrical sleeve
R 2 783,00
inc. vat
In stock
SKU
6766942
Cylindrical sleeve
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical sleeve
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 8mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 4mm |
| BD - Body Diameter | 25mm |
| LB - Body Length | 4mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 0.107kg |
| OAL - Overall Length | 54mm |
| OHX - Maximum Overhang | 4mm |
| LSC - Clamping Length | 50mm |
| ORDCODE | 393.CF-20 08 50 |
| ADINTMS - Adaptive Interface Machine Direction | M_CLTH1_A0200_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLG_F8000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-20 11:21:00.000 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| SEAL - Sealing Property | False |
