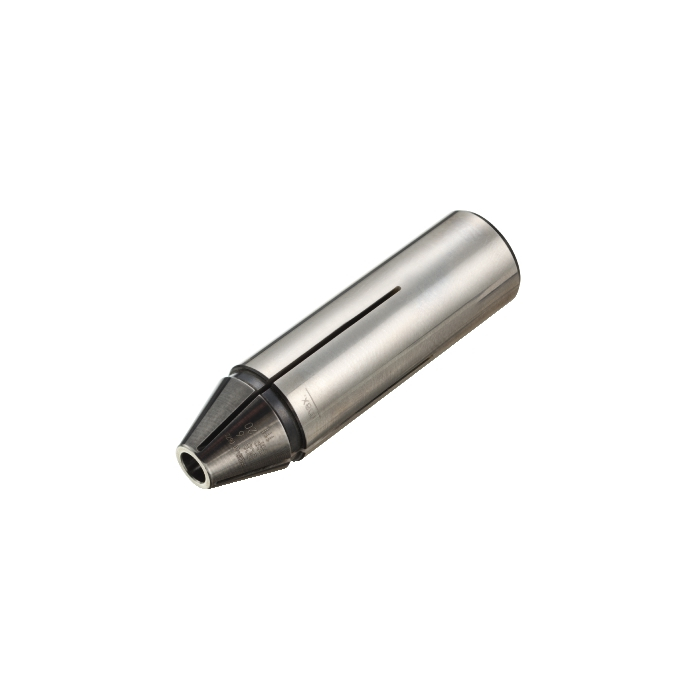

Sandvik Coromant 393.CGP-20 06 72 Cylindrical pencil collet
R 2 714,00
inc. vat
In stock
SKU
5760266
Cylindrical pencil collet
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical pencil collet
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 6mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 72mm |
| BD - Body Diameter | 9mm |
| LB - Body Length | 14.1mm |
| BHTA - Body Half Taper Angle | 20deg |
| WT - Weight Of Item | 135g |
| OAL - Overall Length | 72mm |
| OHX - Maximum Overhang | 21mm |
| LSC - Clamping Length | 55mm |
| ORDCODE | 393.CGP-20 06 72 |
| ADINTMS - Adaptive Interface Machine Direction | M_CLTH2_A0200_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLG_F6000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 22:26:00.000 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| SEAL - Sealing Property | False |
