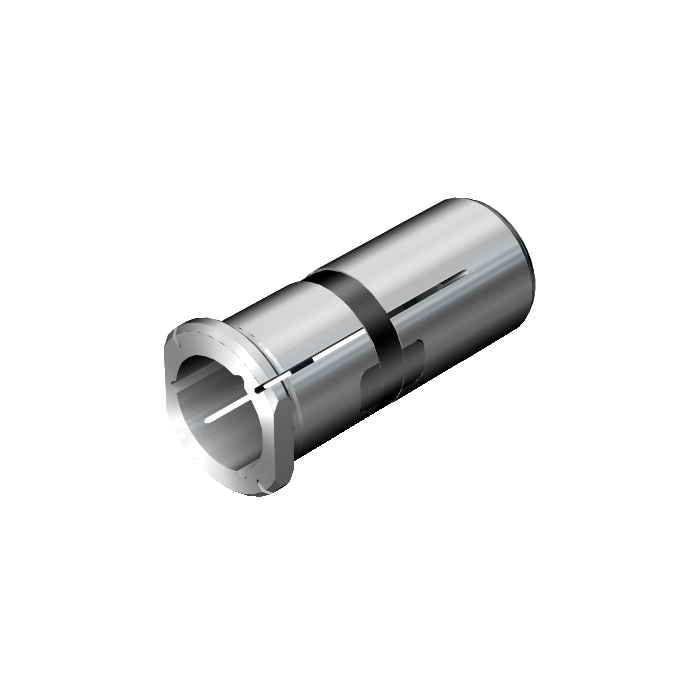

Sandvik Coromant 393.CLF-201652 Collet Collet
R 6 262,90
inc. vat
In stock
SKU
7621265
Collet
Reliable nationwide shipping
Delivery in 4 - 5 days
Collet
| DCON - Connection Diameter | 16mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 4mm |
| BD - Body Diameter | 25mm |
| LB - Body Length | 4mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 0.064kg |
| OAL - Overall Length | 55mm |
| OHX - Maximum Overhang | 4mm |
| LSC - Clamping Length | 50mm |
| ORDCODE | 393.CLF-201652 |
| ADINTMS - Adaptive Interface Machine Direction | M_CLTH1_A0200_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLW_G1600_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-22 16:13:00.000 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
