R 6 200,80
inc. vat
Out of stock
SKU
7082515

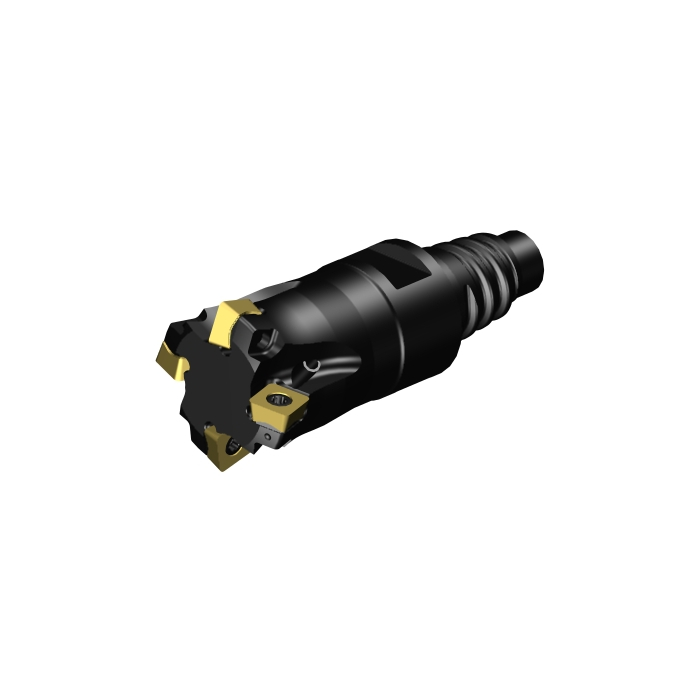

CoroMill® 415 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 415 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 15.5mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 30mm |
BD - Body Diameter | 16mm |
LB - Body Length | 12mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.6Nm |
RPMX - Rotational Speed Maximum | 190001/min |
WT - Weight Of Item | 0.045kg |
OAL - Overall Length | 47mm |
OHX - Maximum Overhang | 30mm |
KAPR - Tool Cutting Edge Angle | 15deg |
RMPX - Maximum Ramping Angle | 0.62deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | -8deg |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 5mm |
Insert Thickness | 2.21mm |
APMX - Depth Of Cut Maximum | 0.85mm |
DC - Cutting Diameter | 11.6mm |
DCF - Cutting Diameter Face Contact | 11.6mm |
GAMF - Radial Rake Angle | 7.73075978deg |
GAMP - Axial Rake Angle | -2.08319514deg |
DCX - Maximum Cutting Diameter | 20mm |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | 415-20EH16-05M |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0160_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:15:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NR0502_1 |
Hand | R |
MIID - Master Insert Identification | 415N-050206M |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 05 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
