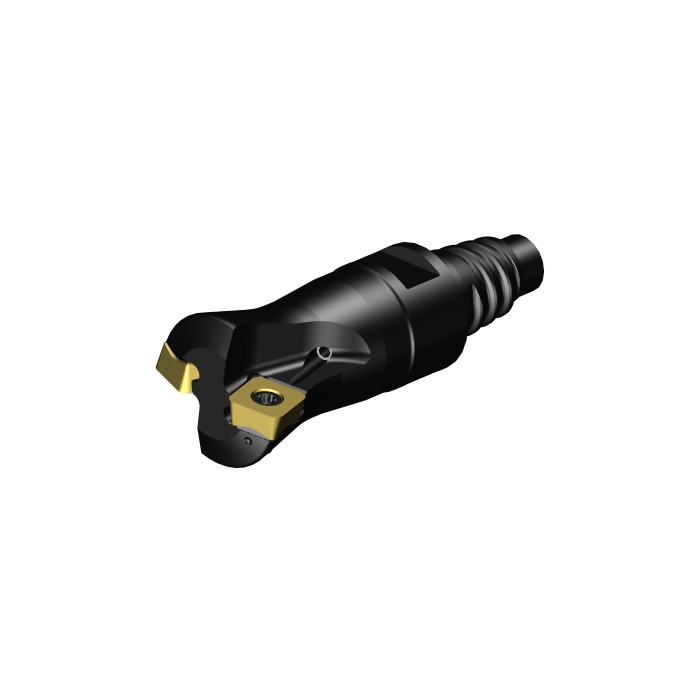

Sandvik Coromant 415-20EH16-07H CoroMill™ 415 face milling cutter

Name: Sandvik Coromant 415-20EH16-07H CoroMill™ 415 face milling cutter
SKU: 7082529
Price: 5919.05 ZAR
Availability: InStock

R 5 919,05 inc. vat

In stock

SKU

7082529

CoroMill® 415 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 415 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	15.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	35mm
BD - Body Diameter	14mm
LB - Body Length	12mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	175001/min
WT - Weight Of Item	0.047kg
OAL - Overall Length	52mm
OHX - Maximum Overhang	35mm
KAPR - Tool Cutting Edge Angle	15deg
RMPX - Maximum Ramping Angle	0.56deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-8deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	7mm
Insert Thickness	3.07mm
APMX - Depth Of Cut Maximum	1.2mm
DC - Cutting Diameter	8.6mm
DCF - Cutting Diameter Face Contact	8.6mm
GAMF - Radial Rake Angle	7.73075978deg
GAMP - Axial Rake Angle	-2.08319514deg
DCX - Maximum Cutting Diameter	20mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	415-20EH16-07H
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:15:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NR0703_1
Hand	R
MIID - Master Insert Identification	415N-070310M
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	07
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
