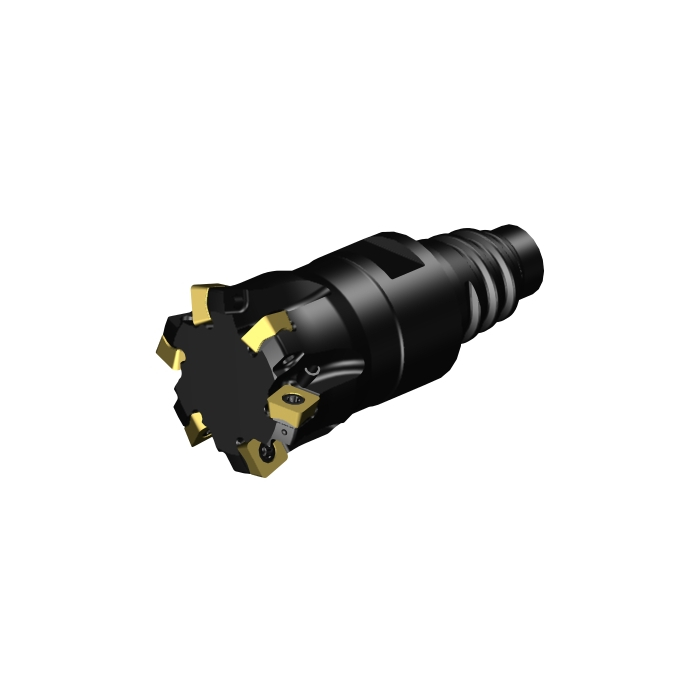

Sandvik Coromant 415-25EH20-05H CoroMill™ 415 face milling cutter

R 7 397,95 inc. vat
Out of stock
SKU
7082518
CoroMill® 415 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 415 face milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 19.3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 32mm
BD - Body Diameter 21mm
LB - Body Length 13mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.6Nm
RPMX - Rotational Speed Maximum 170001/min
WT - Weight Of Item 0.083kg
OAL - Overall Length 51.5mm
OHX - Maximum Overhang 32mm
KAPR - Tool Cutting Edge Angle 15deg
RMPX - Maximum Ramping Angle 0.64deg
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle -8deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 5mm
Insert Thickness 2.21mm
APMX - Depth Of Cut Maximum 0.85mm
DC - Cutting Diameter 16.6mm
DCF - Cutting Diameter Face Contact 16.6mm
GAMF - Radial Rake Angle 7.73075978deg
GAMP - Axial Rake Angle -2.08319514deg
DCX - Maximum Cutting Diameter 25mm
AZ - Maximum Plunge Depth 0mm
ORDCODE 415-25EH20-05H
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:15:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NR0502_1
Hand R
MIID - Master Insert Identification 415N-050206M
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 05
CICT - Cutting Item Count 6
ZEFP - Peripheral Effective Cutting Edge Count 6
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
