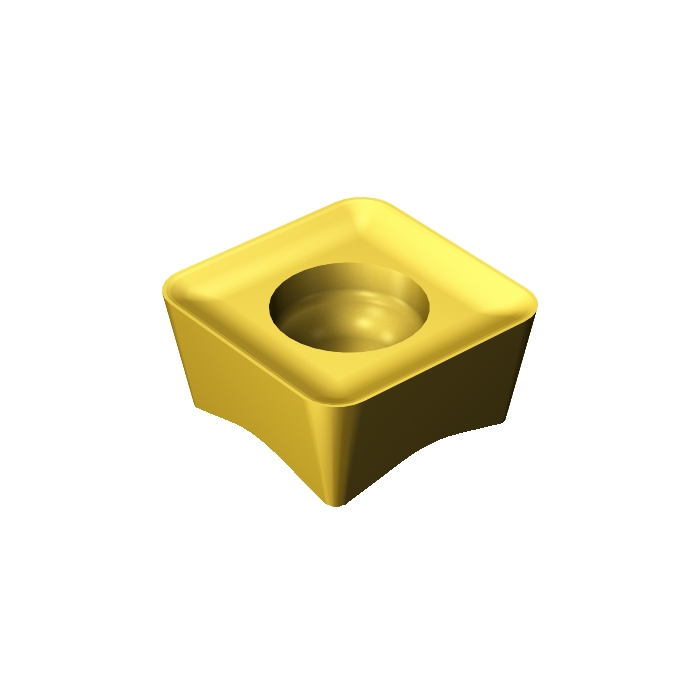

Sandvik Coromant 415N-05 02 06M-M30 S40T CoroMill™ 415 insert for milling
R 236,90
inc. vat
In stock
SKU
7082591
CoroMill® 415 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 415 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.5g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 5mm |
| RE - Corner Radius | 0.6mm |
| Insert Thickness | 2.21mm |
| D1 - Fixing Hole Diameter | 2.2mm |
| LE - Cutting Edge Effective Length | 3.8mm |
| L - Cutting Edge Length | 5mm |
| KRINS - Major Cutting Edge Angle | 15deg |
| GAN - Insert Rake Angle | 5deg |
| APMX - Depth Of Cut Maximum | 0.85mm |
| REEQ - Corner Radius Equivalent | 1.5mm |
| ORDCODE | 415N-05 02 06M-M30 S40T |
| CHANGEDATE | 2022-09-23 20:29:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 05 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NR0502_1 |
| Grade | S40T |
| COATING | CVD TiCrN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | M30 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
