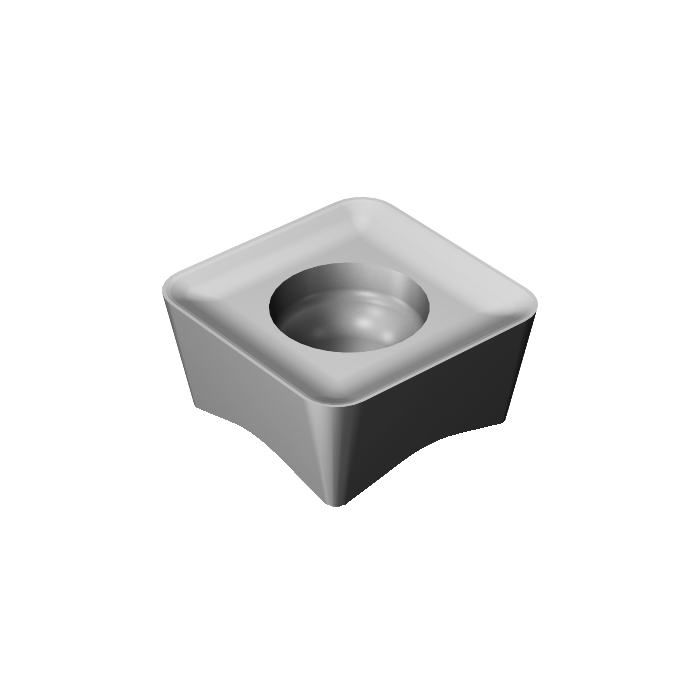

Sandvik Coromant 415N-05 02 12M-M30 1130 CoroMill™ 415 insert for milling
R 236,90
inc. vat
In stock
SKU
7855863
CoroMill® 415 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 415 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 5mm |
| RE - Corner Radius | 1.2mm |
| Insert Thickness | 2.21mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 3mm |
| L - Cutting Edge Length | 5mm |
| KRINS - Major Cutting Edge Angle | 15deg |
| BN - Face Land Width | 0.1mm |
| GB - Face Land Angle | 5deg |
| BS - Wiper Edge Length | 0mm |
| GAN - Insert Rake Angle | 20deg |
| APMX - Depth Of Cut Maximum | 0.85mm |
| CHW - Corner Chamfer Width | 0.1mm |
| BSR - Wiper Edge Radius | 1.2mm |
| REEQ - Corner Radius Equivalent | 2mm |
| ORDCODE | 415N-05 02 12M-M30 1130 |
| CHANGEDATE | 2022-09-23 21:23:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 05 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NR0502_1 |
| Grade | 1130 |
| COATING | PVD AlTiCrN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | M30 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
