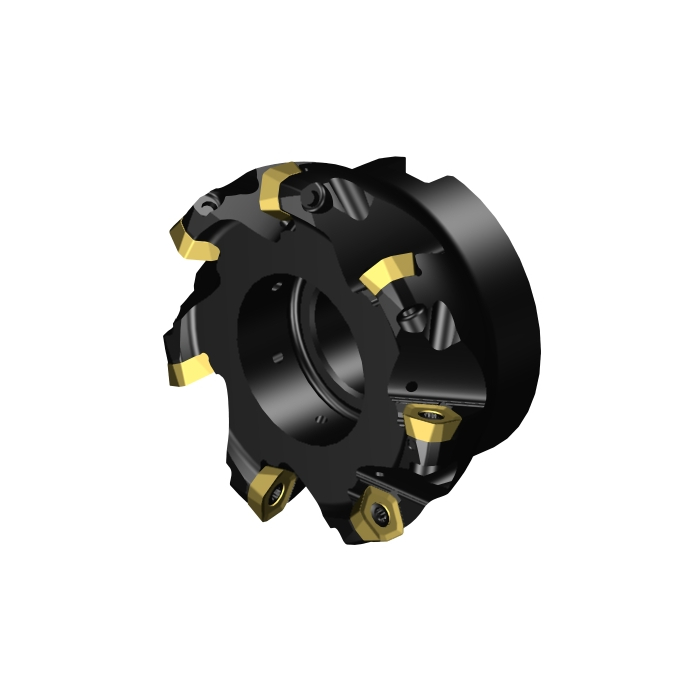

Sandvik Coromant 419-100Q32-14H CoroMill™ 419 face milling cutter
R 15 766,50
inc. vat
In stock
SKU
6289899
CoroMill® 419 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 419 face milling cutter
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 50mm |
| TQ - Torque | 5Nm |
| RPMX - Rotational Speed Maximum | 114001/min |
| WT - Weight Of Item | 1484g |
| OAL - Overall Length | 50mm |
| OHX - Maximum Overhang | 50mm |
| KAPR - Tool Cutting Edge Angle | 19deg |
| RMPX - Maximum Ramping Angle | 0deg |
| GAMO - Orthogonal Rake Angle | 10deg |
| LAMS - Inclination Angle | -1deg |
| AN - Clearance Angle Major | 15deg |
| IC - Inscribed Circle Diameter | 13.5mm |
| Insert Thickness | 5.47mm |
| APMX - Depth Of Cut Maximum | 2mm |
| DC - Cutting Diameter | 85.3mm |
| DCF - Cutting Diameter Face Contact | 85.3mm |
| DN - Neck Diameter | 78mm |
| GAMF - Radial Rake Angle | 4.22707556deg |
| GAMP - Axial Rake Angle | 9.14823504deg |
| DCX - Maximum Cutting Diameter | 100mm |
| AZ - Maximum Plunge Depth | 2mm |
| ORDCODE | 419-100Q32-14H |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1B1_G3200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-24 02:30:00.000 |
| STDLET - Standard Letter | B |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NJ1405_1 |
| Hand | R |
| MIID - Master Insert Identification | 419R-1405 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | P |
| SSC - Insert Seat Size Code | 14 |
| CICT - Cutting Item Count | 7 |
| ZEFP - Peripheral Effective Cutting Edge Count | 7 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
