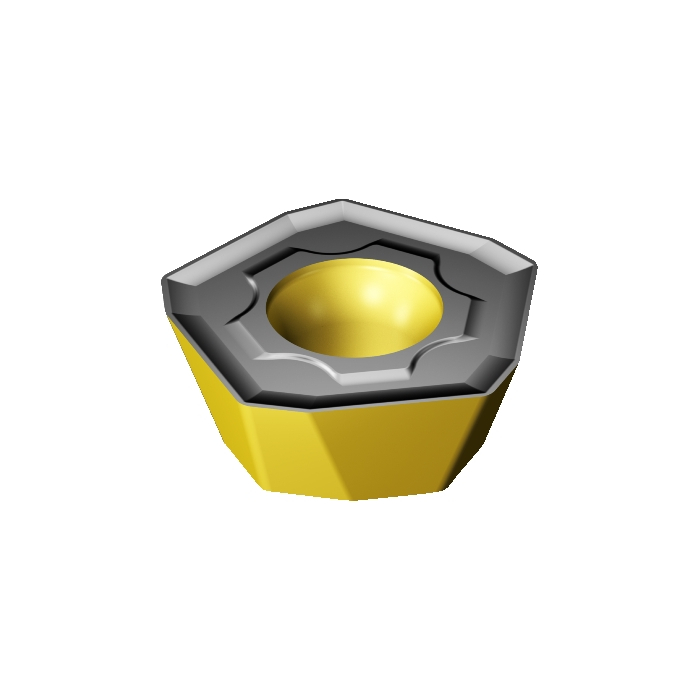

Sandvik Coromant 419R-1405E-MM 4330 CoroMill™ 419 insert for milling

R 387,55 inc. vat
In stock
SKU
7564484
CoroMill® 419 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 419 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.008kg
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 13.5mm
RE - Corner Radius 0.8mm
Insert Thickness 5.47mm
D1 - Fixing Hole Diameter 5.5mm
LE - Cutting Edge Effective Length 9mm
L - Cutting Edge Length 9.808324mm
KRINS - Major Cutting Edge Angle 19deg
BS - Wiper Edge Length 2mm
GAN - Insert Rake Angle 5deg
APMX - Depth Of Cut Maximum 2mm
REEQ - Corner Radius Equivalent 4.5mm
ORDCODE 419R-1405E-MM 4330
CHANGEDATE 2022-09-23 21:20:00.000
Hand R
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code P
SSC - Insert Seat Size Code 14
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_NJ1405_1
Grade 4330
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MM
CEDC - Cutting Edge Count 5
WEP - Wiper Edge Property True
