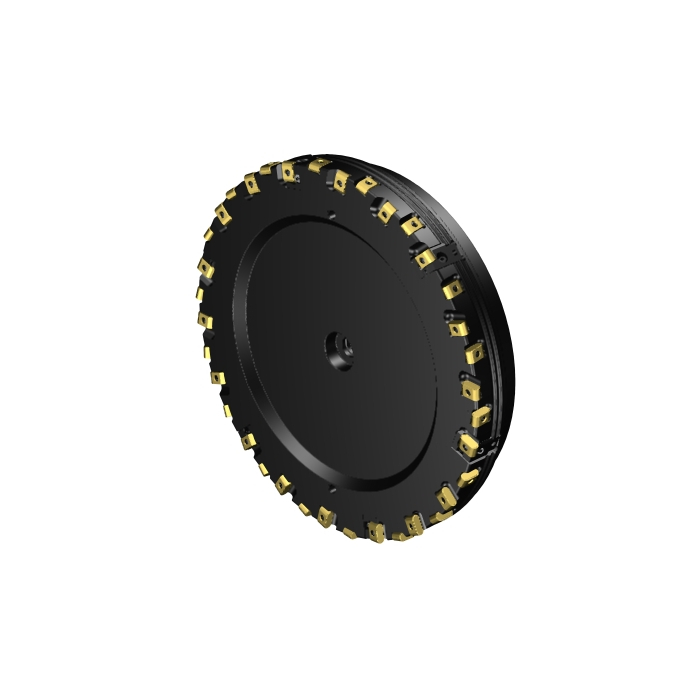

Sandvik Coromant 425-315P-17H CoroMill™ 425 face milling cutter

Name: Sandvik Coromant 425-315P-17H CoroMill™ 425 face milling cutter
SKU: 6717987
Price: 111115.30 ZAR
Availability: InStock

R 111 115,30 inc. vat

In stock

SKU

6717987

CoroMill® 425 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 425 face milling cutter

More Information
DCON - Connection Diameter	268.65mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
BD - Body Diameter	316.1mm
LB - Body Length	63mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	15201/min
WT - Weight Of Item	14.029kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
KAPR - Tool Cutting Edge Angle	25deg
RMPX - Maximum Ramping Angle	0deg
OHN - Minimum Overhang	63mm
GAMO - Orthogonal Rake Angle	-7deg
LAMS - Inclination Angle	-11deg
AN - Clearance Angle Major	0deg
Insert Thickness	10mm
L - Cutting Edge Length	17mm
APMX - Depth Of Cut Maximum	0.9mm
W1 - Insert Width	7.5mm
DC - Cutting Diameter	315mm
DCF - Cutting Diameter Face Contact	315mm
GAMF - Radial Rake Angle	7.08424731deg
GAMP - Axial Rake Angle	-10.94748412deg
DCX - Maximum Cutting Diameter	322mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	425-315P-17H
ADINTMS - Adaptive Interface Machine Direction	M_CCM01_H3150_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-03-24 02:35:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NP1707_1
Hand	R
MIID - Master Insert Identification	425N-1707
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	17
CICT - Cutting Item Count	18
ZEFP - Peripheral Effective Cutting Edge Count	36
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
