Sandvik Coromant 435.B-1000-A1-XF H10F CoroReamer® 435 solid carbide reamer
Next
Sandvik Coromant 435.B-0800-A1-XF H10F CoroReamer® 435 solid carbide reamer
Previous
![Sandvik Coromant 435.B-1000-A1-XF H10F CoroReamer® 435 solid carbide reamer](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/80044d977/sandvik-coromant-435-b-1000-a1-xf-h10f-cororeamerr-435-solid-carbide-reamer.jpg)
![Sandvik Coromant 435.B-0800-A1-XF H10F CoroReamer® 435 solid carbide reamer](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/80042b643/sandvik-coromant-435-b-0800-a1-xf-h10f-cororeamerr-435-solid-carbide-reamer.jpg)
R 3 025,65
inc. vat
Out of stock
SKU
6266786

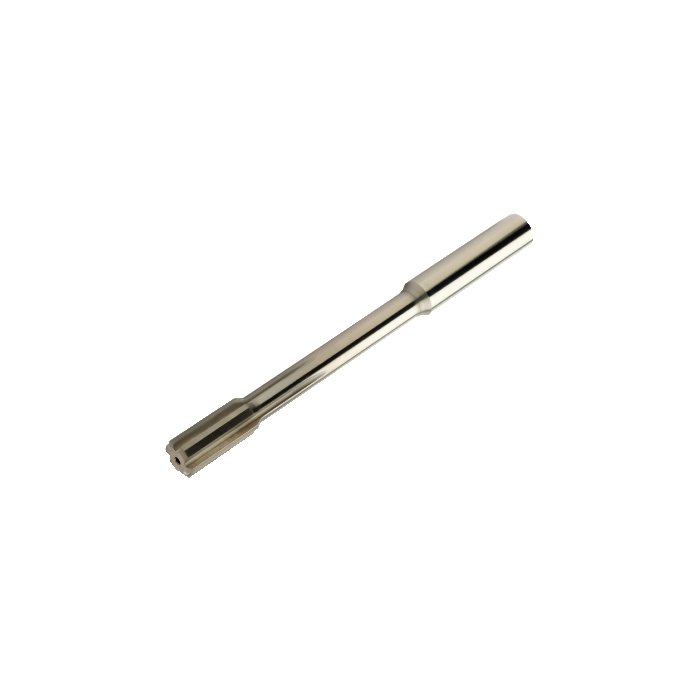

CoroReamer™ 435 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 435 solid carbide reamer
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 8mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 98.8mm |
RPMX - Rotational Speed Maximum | 38151/min |
WT - Weight Of Item | 0.061kg |
OAL - Overall Length | 100mm |
OHX - Maximum Overhang | 62.8mm |
LU - Usable Length | 64mm |
L - Cutting Edge Length | 16mm |
APMX - Depth Of Cut Maximum | 0.3mm |
TG - Taper Gradient | 0 |
DC - Cutting Diameter | 8.01mm |
DN - Neck Diameter | 6.2mm |
FHA - Flute Helix Angle | 0deg |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.015mm |
LCF - Chip Flute Length | 20.8mm |
PHD - Premachined Hole Diameter | 7.8mm |
PLGL - Plug Length | 1.2mm |
ORDCODE | 435.B-0801-A1-XF H10F |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F8000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 13:01:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | H10F |
SUBSTRATE | HF |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | H7 |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
NOF - Flute Count | 6 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
