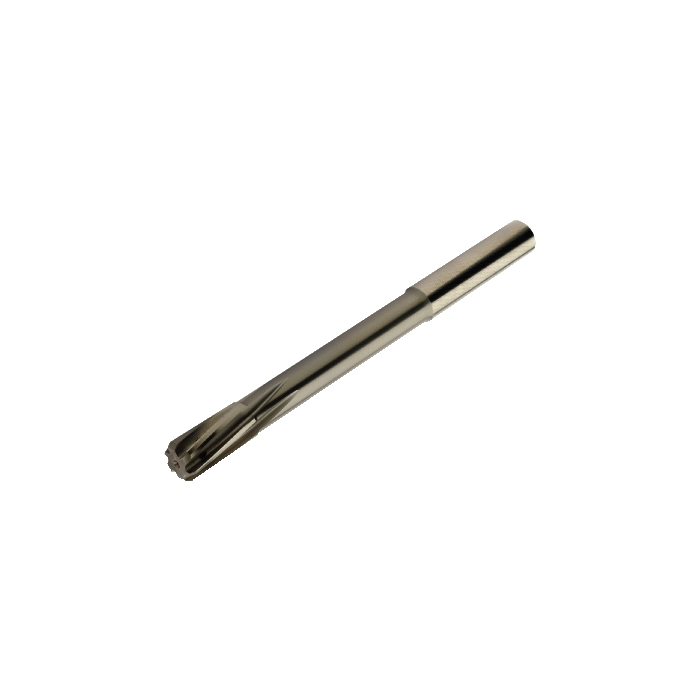

Sandvik Coromant 435.T-1400-A1-XF H10F CoroReamer® 435 solid carbide reamer

R 5 414,20 inc. vat
In stock
SKU
6266872
CoroReamer™ 435 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 435 solid carbide reamer
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 14mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 127.9mm
RPMX - Rotational Speed Maximum 21831/min
WT - Weight Of Item 0.243kg
OAL - Overall Length 130mm
OHX - Maximum Overhang 82.9mm
LU - Usable Length 85mm
L - Cutting Edge Length 22mm
APMX - Depth Of Cut Maximum 0.3mm
TG - Taper Gradient 0
DC - Cutting Diameter 14mm
DN - Neck Diameter 10.9mm
FHA - Flute Helix Angle 10deg
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.018mm
LCF - Chip Flute Length 28.6mm
PHD - Premachined Hole Diameter 13.8mm
PLGL - Plug Length 2.1mm
ORDCODE 435.T-1400-A1-XF H10F
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1400_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 13:02:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade H10F
SUBSTRATE HF
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H7
ZEFP - Peripheral Effective Cutting Edge Count 6
NOF - Flute Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
