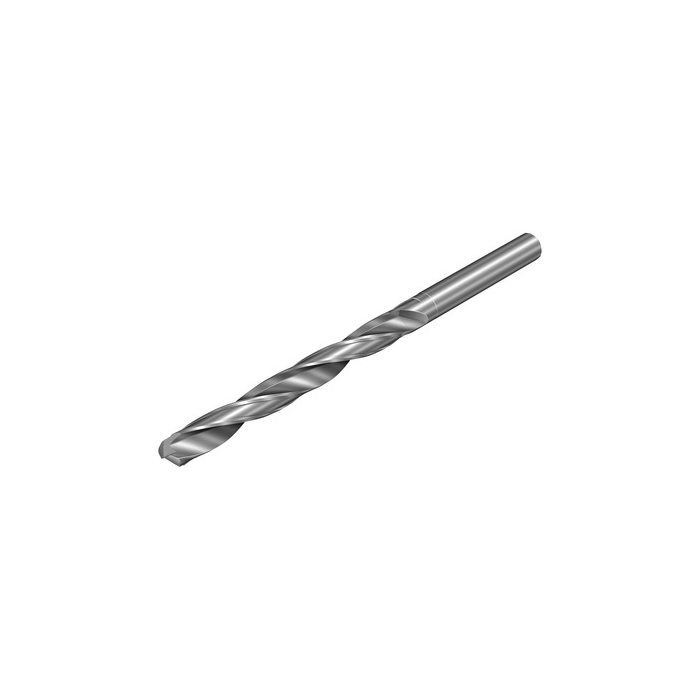

Sandvik Coromant 452.1-0610-045A0-CM H10F CoroDrill® 452 solid carbide drill
R 979,80
inc. vat
In stock
SKU
7516198
CoroDrill® 452 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 452 solid carbide drill
| DCON - Connection Diameter | 6.1mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 98.74mm |
| RPMX - Rotational Speed Maximum | 500001/min |
| WT - Weight Of Item | 0.031kg |
| OAL - Overall Length | 100mm |
| OHX - Maximum Overhang | 48.74mm |
| LSC - Clamping Length | 50mm |
| GAMO - Orthogonal Rake Angle | 13.46deg |
| LU - Usable Length | 45mm |
| DC - Cutting Diameter | 6.1mm |
| FHA - Flute Helix Angle | 20deg |
| ULDR - Usable Length Diameter Ratio | 7.377049180328 |
| PL - Point Length | 1.26mm |
| LCF - Chip Flute Length | 50mm |
| SIG - Point Angle | 135deg |
| ORDCODE | 452.1-0610-045A0-CM H10F |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F6100_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-09-22 17:37:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h7 |
| Grade | H10F |
| SUBSTRATE | HF |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | K8 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
