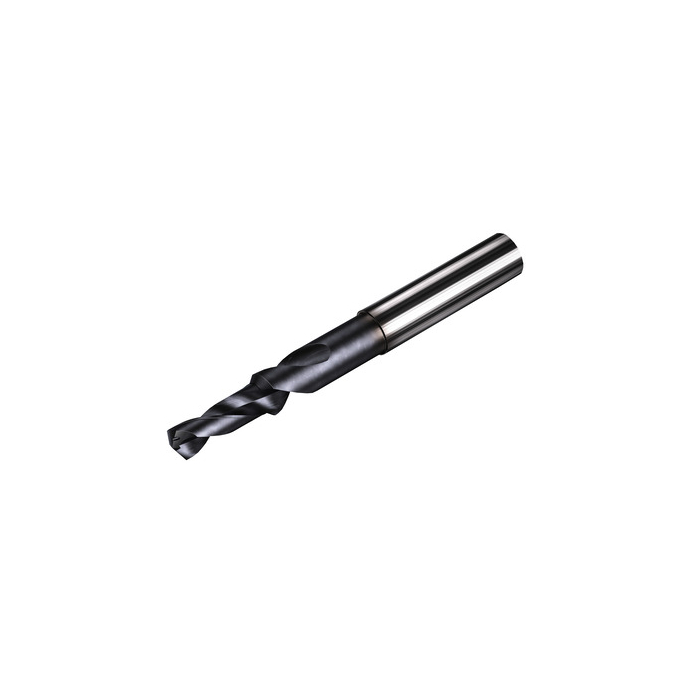

Sandvik Coromant 460.2-1080-032A1-XM GC34 CoroDrill® 460 solid carbide step and chamfer drill

Name: Sandvik Coromant 460.2-1080-032A1-XM GC34 CoroDrill® 460 solid carbide step and chamfer drill
SKU: 6762669
Price: 7276.05 ZAR
Availability: OutOfStock

Be the first to review this product

R 7 276,05 inc. vat

Out of stock

SKU

6762669

CoroDrill® 460 solid carbide step and chamfer drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 460 solid carbide step and chamfer drill

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	122.4mm
RPMX - Rotational Speed Maximum	88421/min
WT - Weight Of Item	0.264kg
OAL - Overall Length	124mm
OHX - Maximum Overhang	74.4mm
GAMO - Orthogonal Rake Angle	14.35deg
LU - Usable Length	33.6mm
DC - Cutting Diameter	14.58mm
FHA - Flute Helix Angle	21.3deg
PL - Point Length	1.6mm
LCF - Chip Flute Length	57mm
SIG - Point Angle	140deg
SDL - Step Diameter Length	30.1mm
STA - Step Included Angle	90deg
ORDCODE	460.2-1080-032A1-XM GC34
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1600_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	2
CHANGEDATE	2021-11-11 16:32:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	GC34
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
TCHA - Achievable Hole Tolerance	H9
ZEFP - Peripheral Effective Cutting Edge Count	2
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
