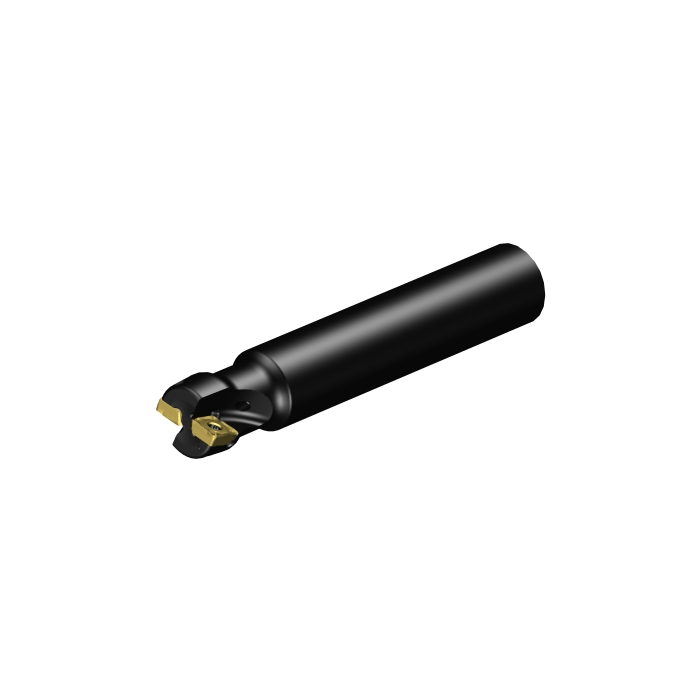

Sandvik Coromant 490-020A20-08L coromill™ 490 square shoulder milling cutter

Name: Sandvik Coromant 490-020A20-08L coromill™ 490 square shoulder milling cutter
SKU: 5761991
Price: 5409.60 ZAR
Availability: InStock

Be the first to review this product

R 5 409,60 inc. vat

In stock

SKU

5761991

coromill® 490 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

coromill® 490 square shoulder milling cutter

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	110mm
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	485001/min
WT - Weight Of Item	0.251kg
OAL - Overall Length	110mm
OHX - Maximum Overhang	60mm
LSC - Clamping Length	80mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	19.9deg
LAMS - Inclination Angle	15deg
IC - Inscribed Circle Diameter	8.5mm
Insert Thickness	3.3mm
LU - Usable Length	25mm
APMX - Depth Of Cut Maximum	5.5mm
DC - Cutting Diameter	20mm
DCF - Cutting Diameter Face Contact	18.4mm
GAMF - Radial Rake Angle	19.90000018deg
GAMP - Axial Rake Angle	14.99999987deg
AZ - Maximum Plunge Depth	0mm
ORDCODE	490-020A20-08L
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:00:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MI08T3_1
Hand	R
MIID - Master Insert Identification	490R-08T308
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	08
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
